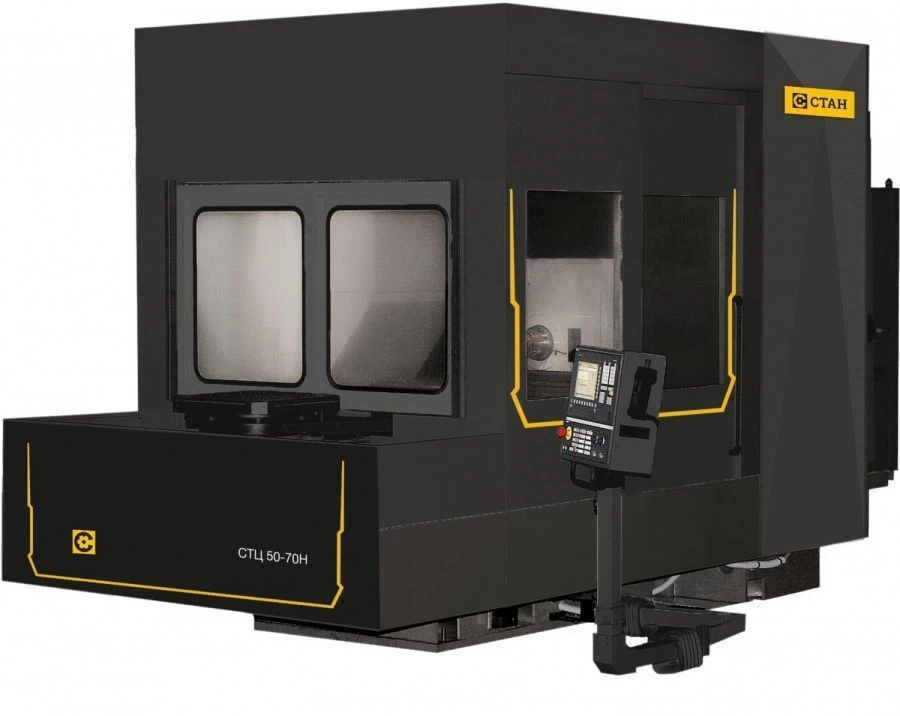

High-Speed Horizontal Machining Center STC H 50x2 (ISB500PMF4)

Available for Import

High-Speed Horizontal Machining Center STC H 50x2 for Efficient Production

Metal Machining Centres

Manufacturer: ISZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Horizontal milling machining centre STC H 63x2C

Description

The powerful high-speed horizontal milling machining centre model STC H 50x2 (ISB500PMF4) with automatic pallet changing is designed for high-performance complex machining of particularly complex body parts made of any structural materials.

Specifications

Type of product according to PP RF 616

Horizontal machining centers 4-axis 3-axis)

Height

3560 mm

Length

7850 mm

Width

4250 mm

Machine type

Machining centre STC H 50x2

Machine weight

14000 kg

Coolant supply via nozzles on the spindle headstock

l/min 100 l

Maximum tool length

400 mm

Maximum tool diameter

125 mm

Tool magazine capacity

64 pcs

Maximum feed force in X/Y (down)/Y (up)/Z axes

kn 12;5 / 10 / 5 / 15

Speed of fast movements in X, Y, Z axes

m/min 15 m

Working feed rate limits in X, Y, Z axes

mm/min 1 .... 10 000 mm

Maximum programmable movements,

mm: - x-axis (stand transversely) 1,000 - y-axis (spindle headstock vertically) 630 - z-axis (table longitudinally) 750 mm

Maximum spindle torque

nm 900

Maximum spindle speed

4500* / 6000

Maximum table torque in the B axis

nm 1280

Working feed rate limits of the rotary table in the B axis

deg/min 1 .... 1080 °C

Rotary table discretization (B axis)

grad 0;001 °C

Lifting capacity of table 800

800 kg

Time of change of satellite tables

Number of satellite tables

2 pcs

Size of the work surface of the companion table

500x500 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
