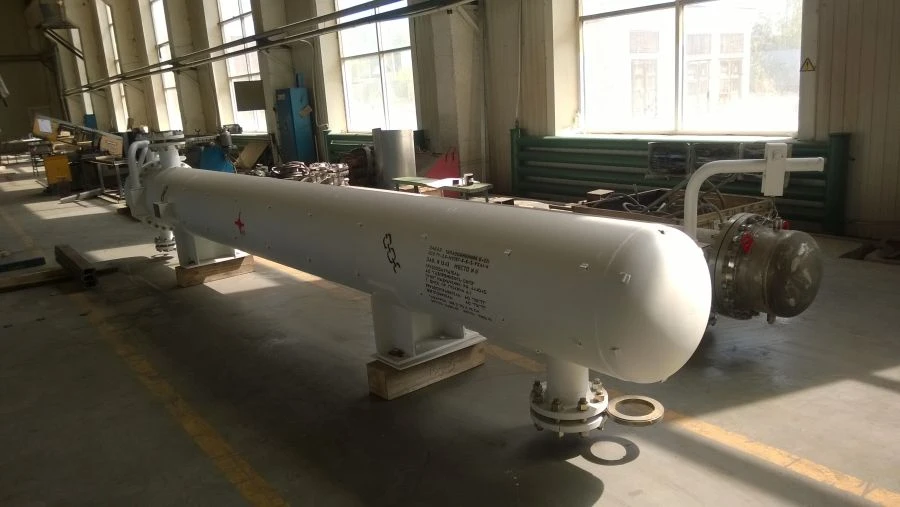

Heater of heating water

The heating water heater 500TU-2,5-M1*/25G-5-K-2-UHL1-I is designed for heating of heating water. Heat water heater 500TU-2,5-M1*/25G-5-K-2-UHL1-I - Heat exchanger with U-shaped pipes, with a casing with diameter - 500; for conditional pressure in pipes and casing - 2,5 MPa; execution by material M1*: heat-exchange pipes - steel 20, the rest - 09G2S; with smooth heat-exchange pipes with diameter - 25, length - 5 m, with pipes arrangement in the pipe board by square; two-pass by pipe space; place of installation in moderately cold climate - climatic execution 1; with details for thermal insulation fastening. Heat water heater 500TU-2,5-M1*/25G-5-K-2-UHL1-I: design pressure 1,5 MPa; average permissible air temperature from -40 C; working medium - liquid: in the intertube space - light gasoil, in the tube space - heat water; capacity: tube space - 0,36 m3, intertube space - 0,64m3; design, purpose ...
