Refrigerator of utilisation products

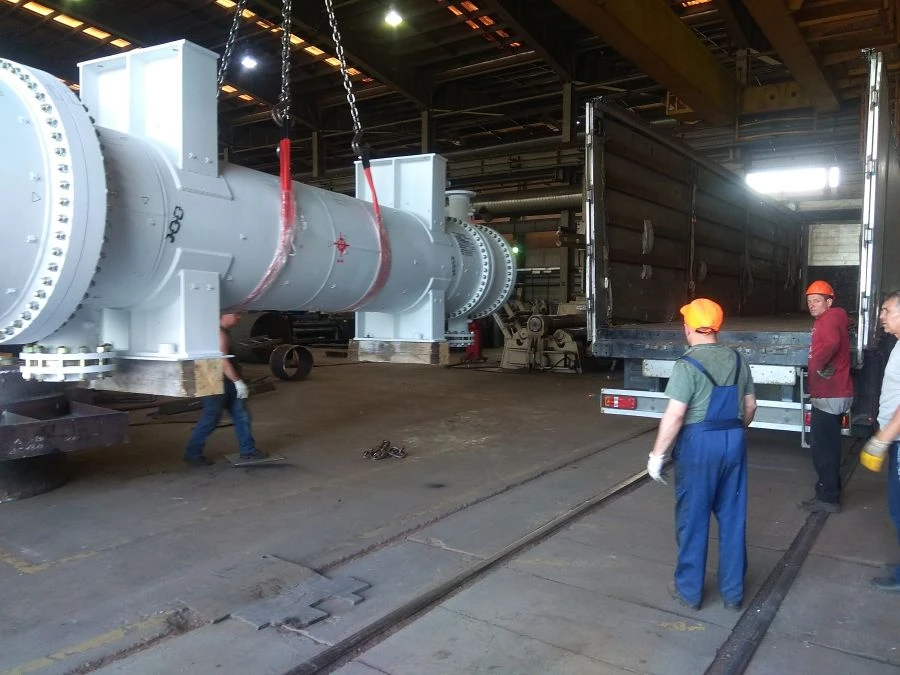

The refrigerator of utilisation products 1200???-1,6-?*/25?-6,3-?-2-???1-? is designed for utilisation of coking products. Refrigerator of utilisation products 1200KHPG-1,6-M*/25G-6,3-K-2-UHL1-I - Refrigerator with a floating head, horizontal, with a casing with diameter - 1200; for conditional pressure in pipes and casing - 1,6 MPa; execution by material M*: heat-exchange pipes - 08?18?10?, the rest -12?18?10?, supports - 09G2S; with smooth heat-exchange pipes with diameter - 25, length - 6,3 m, with pipes arrangement in the pipe board on a square; 2-way on a pipe space; place of installation in moderately cold climate - climatic execution 1, with details for fastening of thermal insulation. Refrigerator of products of utilisation 1200???-1,6-?*/25?-6,3-?-2-???1-? - design pressure 1,0 ???; average permissible temperature of air -40 ? ; working environment: intertube space - water vapours, hydrocarbon vapours, liquid, pipe space - recycled water, liquid; capacity: pipe space ... .
