Heat exchanger gas-water TGV 150/6,3-26-U1-01

Industrial Heat Exchangers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

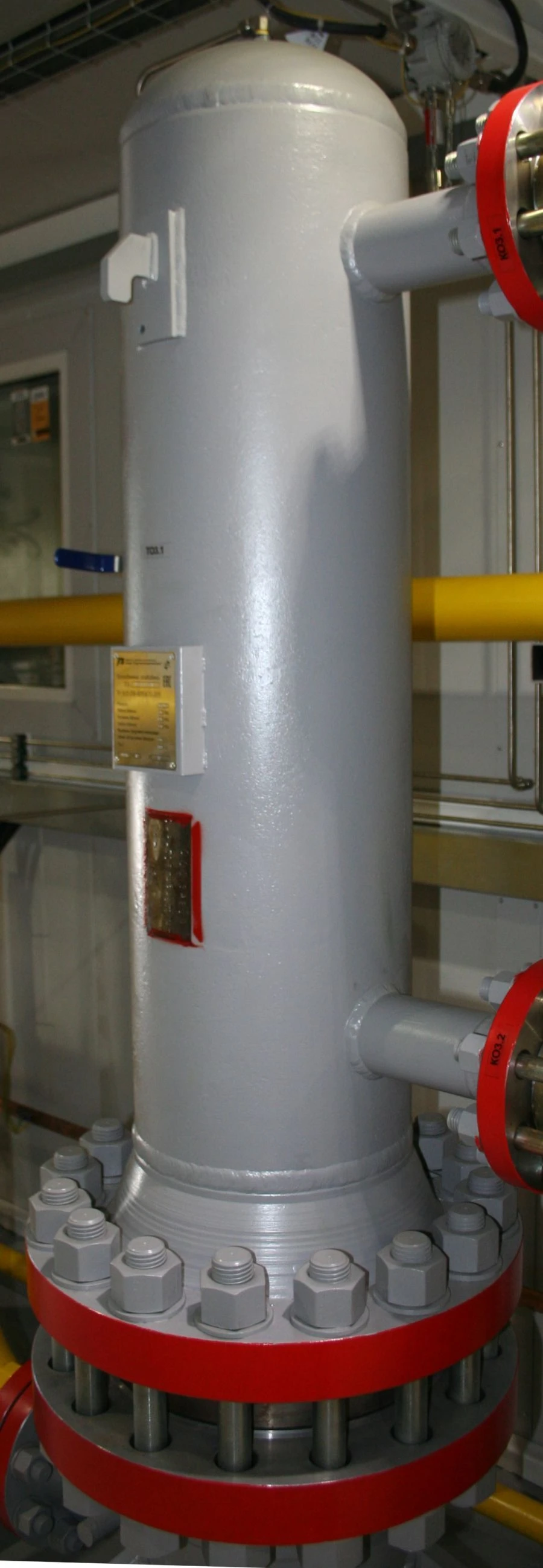

Gas-water heat exchanger TGV 150/6,3-26-U1-01 zI.4.462.551-01 is a steel shell-and-tube heat exchanger designed for heating natural gas by means of intermediate coolant at main gas pipelines (gas distribution stations, fuel gas treatment units of compression stations, as well as other consumers of warm gas. Climatic design of heat exchangers is U1 according to GOST 15150. Estimated service life of TGV is 30 years. Operation in areas with seismicity not more than 8 points. Warranty period of operation - 18 months from the moment of TGV commissioning, but not more than 24 months from the date of shipment by the manufacturer. Long-term storage of the product in the preserved form should be carried out in an unheated room or under a canopy and correspond to conditions 6 (OZh2) according to GOST 15150-69 in terms of exposure to climatic factors. It is allowed to store in the preserved form in the open air on the site, providing protection of the product from...

Specifications

Diameter 426 mm

Length 2016 mm

Fire hazard according to GOST 12.1004-91 Yes; no

Additive for corrosion (erosion) compensation 3 mm

Capacity 0.018

Empty vessel weight 1117 kg

Working environment group according to TR TS 032/2013 1

Vessel group according to table 1 of GOST 34347-2017 2

Working pressure 6.3 MPa

Design pressure 6.3 MPa

Test pressure of the hydraulic test during manufacturing 8 MPa

Sample pressure of the pneumatic test during manufacturing 6.3 MPa

Operating temperature 95 °C

Design wall temperature 95 °C

Minimum allowable temperature of the vessel wall under design pressure -20 °C

Name of working medium Natural gas according to GOST 5542-2014 or STO Gazprom 089-2010; boiler water or coolant according to GOST 28084-89

Hazard class according to GOST 12.1.007-76 4; boiler water - none, coolant 3

Explosion hazard according to GOST 12.1.010-76 Yes; no

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
