Hardware-software complexes with photo and video fixation "Dozor-M3".

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The software and hardware complexes with photo and video fixation "Dozor-M3" (hereinafter - complexes) are designed to measure the current time synchronised with the national time scale UTC(SU), measure the current navigation parameters and determine on their basis the coordinates of complexes.
The principle of operation of the complexes when measuring the current time and coordinates is based on parallel reception and processing of signals of navigation spacecrafts of GLONASS/GPS space navigation systems by means of the receiver included in the complex, automatic synchronisation of the time scale of the complex with the national time scale UTC(SU) and recording of the current moment of time and coordinates in the stored photo and video frames formed by the complex.

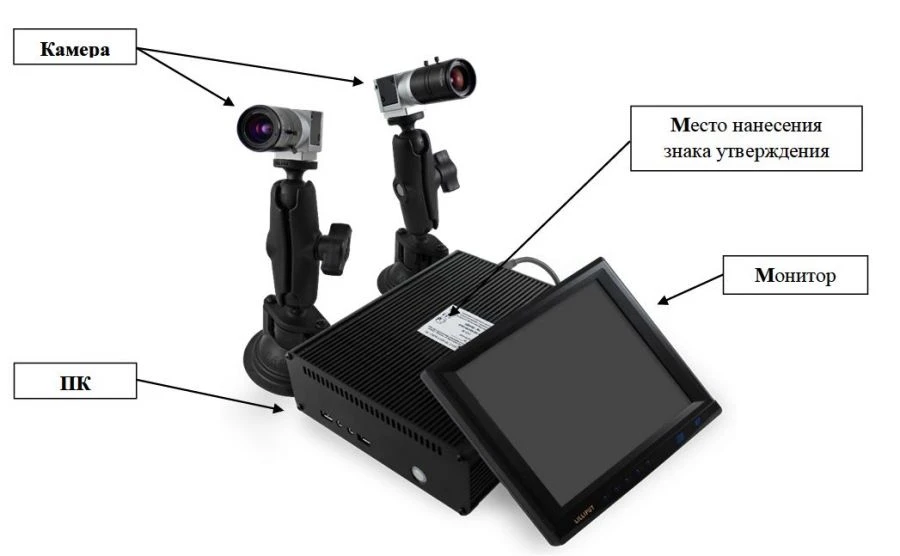

The complexes are produced in the following versions 01, 02 and 03, which differ in the types of industrial computer (PC) housings, as well as complete with a touch screen monitor. Installed software (software) complexes protected electrical ...

Specifications

Limits of permissible absolute error of synchronization of the internal time scale of complexes with the national time scale UTC ±2

Boundaries of permissible error (at probability level 0,95 and geometrical factor PDOP ? 3) of coordinates determination in p ±5 m

Complex power supply voltage (DC) version 01 from 10,8 to 23; version 02 from 10,8 to 15; version 03 from 10,8 to 30. V

Power consumption of the complexes, not more version 01 - 100; version 02 - 75; version 03 - 150. W

Working conditions of application Version 01: - ambient air temperature, from 5 to 40 °C; relative humidity at 25 °C without condensation, up to 80 %; version 02 and version 03: ambient air temperature, from -10 to +50 °C; relative humidity at 25 °C without condensation, up to 80 %; versio

Overall dimensions of the complexes version 01: industrial computer 280x240x140; monitor 275x185x40; version 02: cameras 130x60x80; industrial computer 175x145x60; monitor 275x185x40; cameras 130x60x80; version 03: industrial computer 220x350x430; cameras 200x100x100; version 03: industrial mm

A mass of complexes version 01 not more than 8; version 02 not more than 8; version 03 not more than 20 kg
