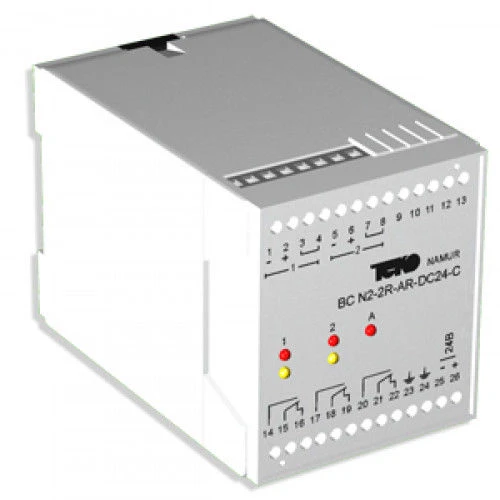

BC N2-2R-AR-DC24 interface box

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The BC N2-2R-AR-DC24 interface unit is designed to supply inductive contactless special explosion-proof sensors and to convert the low-current analogue signal from the sensor into an optocoupler signal to control actuators. The interface unit provides: 1. Galvanic isolation of the sensor with the executive device; 2. Conversion of the low-current sensor signal into the optocoupler output signal to control the executive device with simultaneous indication of the closed output state; 3. Inversion of the channel output state by setting a jumper; 4. Control of the sensor and sensor communication line (short circuit, broken wire); 5. Light indication and opening of the outputs of the working channel when a fault is detected in it; 6. Formation of the EMERGENCY signal and opening of the emergency channel contacts in case of a fault in the working channel.

Specifications

Recommended switching frequency Not more than 2 Hz

Maximum switching frequency 200

Type of emergency exit Relay

Method of attachment DIN rail

Load resistance of the circuit breaker 1k ohm

Line resistance between circuit breaker and unit ?50 ohms

Operating temperature range 0....+60C

Emergency protection threshold (breaker wire break) <0.1 mA

Emergency protection threshold (short circuit) >6mA

Response threshold 1,55 ... 1,75 mA

Rated current of the circuit breaker 2,2 mA

Rated voltage at the switch 8.2 V

Weight 0.25 kg

Number of electronic outputs no

Number of relay outputs 1 pc

Number of switches to be connected 1...2 pc

Permissible load current (optocoupler/optocoupler) 50 mA

Permissible load current (/relay) 1 A

Permissible output voltage (relay) 240 V AC / 60 V DC

Permissible output voltage (optocoupler/optocoupler) 50 V DC

Rated supply voltage, Unom. 24 V DC

Rectangular enclosure size, LxWxH 70x75x110

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
