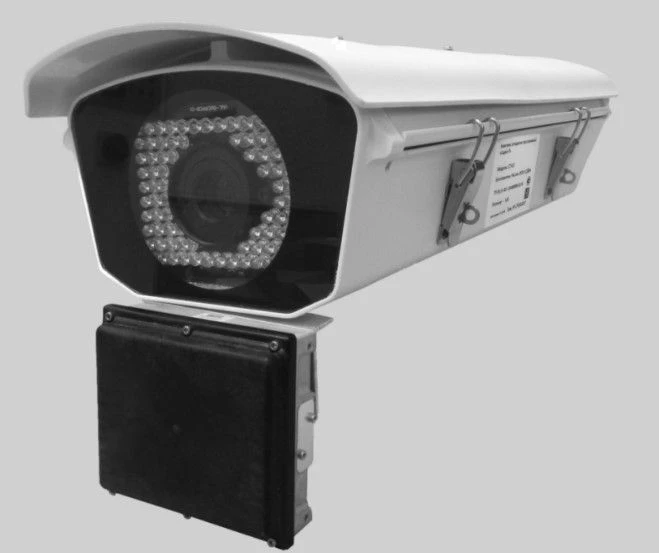

Hardware-software complex "SADKO 20"

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The complex is designed for:
- Measuring the instantaneous speed of vehicles (hereinafter referred to as TC) in the control zone in automatic mode;
- Measurement of the average speed of vehicles on the controlled road section in automatic mode;
- Fixation of violations of the rules and requirements of the articles of the Administrative Offences Code: 12.9 ?. 1-7; 12.12 ?. 2; 12.12 ?. 1; 12.15 ?. 1; 12.15 ?. 1.1; 12.15 ?. 2; 12.15 ?. 3; 12.15 ?. 4; 12.19 ?. 1-6; 12.18; 12.4 ?. 1-3; 12.20; 12.6; 12.11 par. 1,2; 12.13 par. 1,2; 12.14 ?. 1-3; 12.17 ?. 1-2; 12.28 part 1,2; 12.11 part 3; 12.16 part. 1,3; 12.16 ?. 2; 12.16 ?. 4,5; 12.16 ?. 6, 7; 12.10 ?. 1-3; 11.26; 12.21.1 ?. 1-10; 8.14;
- Determination of the current time synchronised with the national time scale of the Russian Federation UTC(SU);
- Determination of the location of "Hardware-software complex "SADKO 20"".
It is used to detect violations of traffic rules, in pursuance of paragraph 3 of Article 1 102-FZ of the Russian Federation from 26 June 2008. .

Specifications

Operation at ambient air temperature, °? -70 - 70

Protection class according to GOST 14254-2015 IP66/IP67

Power consumption, V-A (W), not more 22

Warranty period of operation 2...3 a

Minimum distance between two fixation units when measuring vehicle speed on the controlled road section 100 m

Operation at ambient relative humidity at 2°C, max. 98 %

Degree of hazard Does not contain hazardous or poisonous substances that may be harmful to human health or the environment

Operating frequency of radiation 24.05...24.25

Operation at atmospheric pressure, kPa 60...106.7

DC supply voltage, V 7...20 V

Service life 6 a

AC frequency of supply mains current 49...51

AC mains supply voltage 82...300 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
