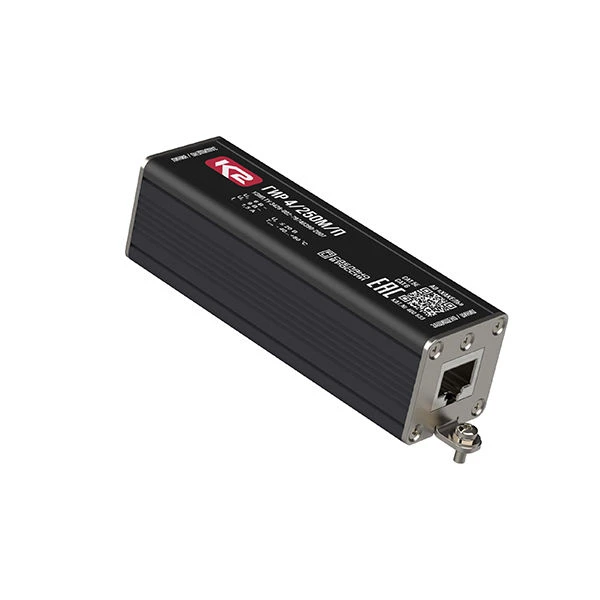

GIR 4/250M/P (LT) surge protection device, Cat.No.400 537.

UZIP GIR 4/250M/P (LT), TU 3428-002-79740390-2007 are designed for protection against impulse overvoltages (lightning protection, protection against electrostatic discharges, etc.) of LAN equipment of categories 5e/6 with Ethernet interfaces of 1000BASE-T, 10GBASE-T standards within 0B - 2 lightning protection zones in accordance with GOST R IEC 62305-1. Produced for rated operating voltage UO = 6 V DC, IL = 1.5 A. Capable of passing rated discharge current In (8/20)=1 kA, ITotal (10/350)=1 kA. Data transfer rate 1/10 Gbit/s. They are made in a metal case with a plate for fastening to a flat surface. RJ45 connectors (1 port) are installed on the side of the line and protected equipment.
