Available for Import

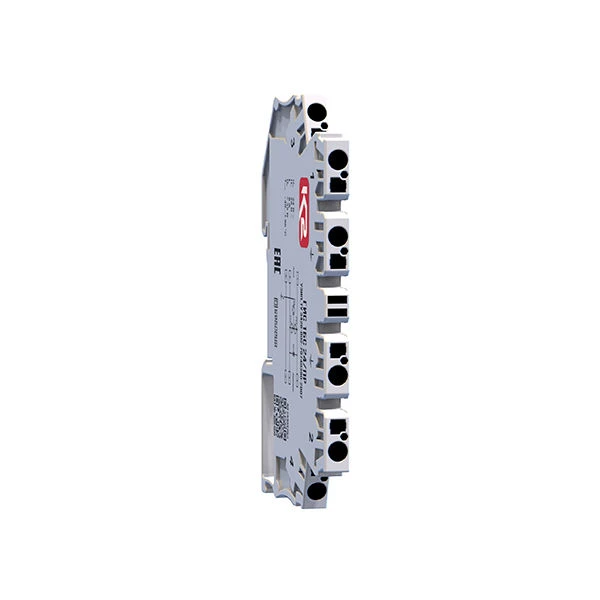

GIS 1BS 24/PR surge protection device, cat.no.406 505.

Surge Protection Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

GIS 1BS 24/PR surge protection device, cat.no.406 509.

Description

UZIP GIS 1BS 24/PR, TU 3428-002-79740390-2007 are designed to protect equipment on circuits in which it is inadmissible to introduce additional resistance, from impulse overvoltages (lightning protection, protection from electrostatic discharges, etc.) within 1 - 2 zones of lightning protection in accordance with GOST R IEC 62305-1-2010. They are produced for nominal operating voltage Uo= 24 V DC, nominal current IL= 6 A. Capable of passing the total discharge current ITotal(8/20)=10 kA, ITotal (10/350)= 5 kA. Data transfer rate up to 10 Mbit/s. Made in a thin plastic housing (terminal with flat spring clamps WAGO 859 without side plug) for mounting on a rail DIN 35 mm. (Side plug Wago 859-525 is purchased separately). The number of protected pairs of conductors - 1.

Specifications

maximum operating current (max.

6 A

Operating voltage

24 V

Dimensions

Weight

0.042 kg

Number of channels

1 pc
