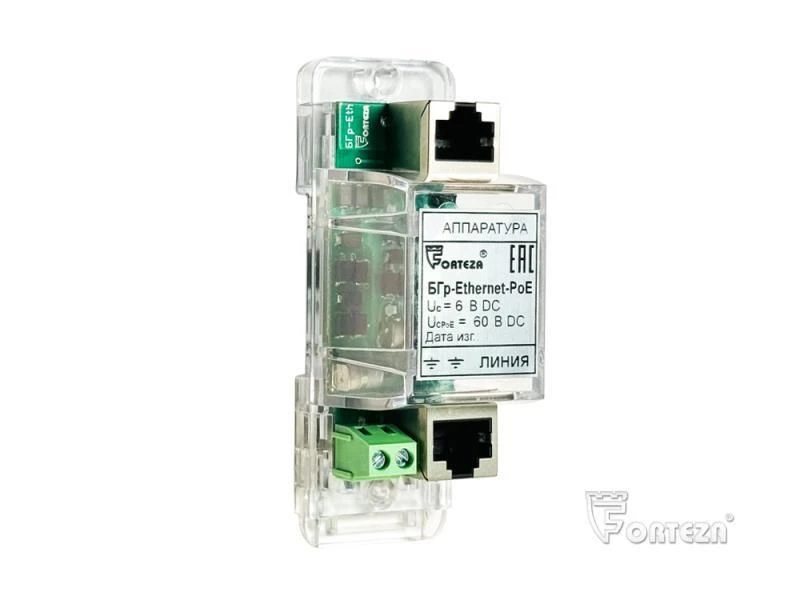

Lightning protection unit "Block BGr-Ethernet-PoE"
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
They are used for protection of ports of local Ethernet network from impulse overvoltages caused by lightning surges.BGr-Ethernet-PoE provides protection of 8-wire Ethernet network with PoE support, made in a plastic case for mounting on DIN-rail or flat surface.
Specifications
Dimensions
96x33x41 mm
Weight
0.1 kg
Degree of enclosure protection
IP-20
Operating current, max.
0.6 A
Number of circuits
8 pc
Maximum continuous operating voltage for DC data lines
6 V
Bandwidth at -2 dB level, not less than
250
Maximum continuous operating voltage for PoE lines, DC
60 V
Protection voltage for data line: 15 V; for PoE lines: 90 V; relative to ground
600 V
Test pulse for data lines: 0.5 kV, PoE: 0.5 kV; relative to ground
4 kV
Operating temperature range
-55...65 °C
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
