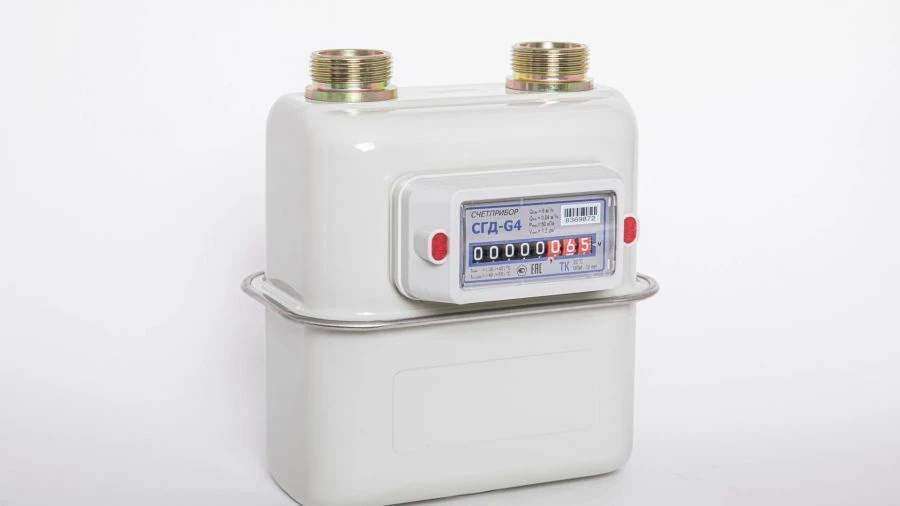

Gas meter volumetric diaphragm gas meter "Schetpribor" SGD
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Purpose: for metering the volume of consumed gas.
Measured medium: natural gas, vapours of liquefied gas.
Field of application: in flats and individual houses.
The principle of operation of the meters is based on conversion of differential pressure of gas passing through the meter into reciprocating movement of diaphragms of the measuring mechanism, which is converted into rotary movement through the lever mechanism and through the drive shaft is transferred to the counting device.
Size: from the range G-1,6; G-2,5; G-4; G-6.
Measured medium: natural gas, vapours of liquefied gas.
Field of application: in flats and individual houses.
The principle of operation of the meters is based on conversion of differential pressure of gas passing through the meter into reciprocating movement of diaphragms of the measuring mechanism, which is converted into rotary movement through the lever mechanism and through the drive shaft is transferred to the counting device.
Size: from the range G-1,6; G-2,5; G-4; G-6.
Specifications
Type of product according to PP RF 616
Other tools and instruments for measurement, inspection and testing
Type of product according to PP RF 616
Instruments and other instruments for measurement, control and testing
Weight
2 kg
Cyclic volume
0,7 dm3
Inter-centre spacing between sockets
110/130/150/250 mm
Volume flow rate
0.016 - 10 m3/h
