Measuring complex GSP-01-25

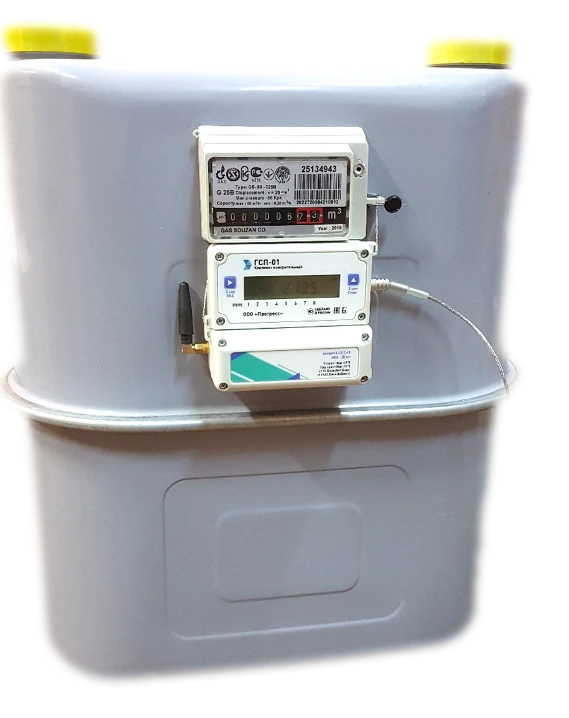

The complexes are designed to measure the volume of gas, reduced to standard conditions in accordance with GOST R 56333-2015, based on measurements of gas volume under operating conditions, gas temperature and entered conditionally constant values of absolute pressure and gas compressibility coefficient. The complexes consist of a "G" type membrane gas meter and an electronic correction unit. The gas temperature is measured by a resistance thermocouple installed in the body of the meter for direct contact with the gas flow.
Main functions:
-measurement of gas volume at operating conditions, gas temperature;
-calculation of gas volume reduced to standard conditions;
-processing, display, storage of measured information and setting parameters;
-data archiving
-event logging
- transmission of measured and calculated information via communication interfaces;
-protection of information from unauthorised access
