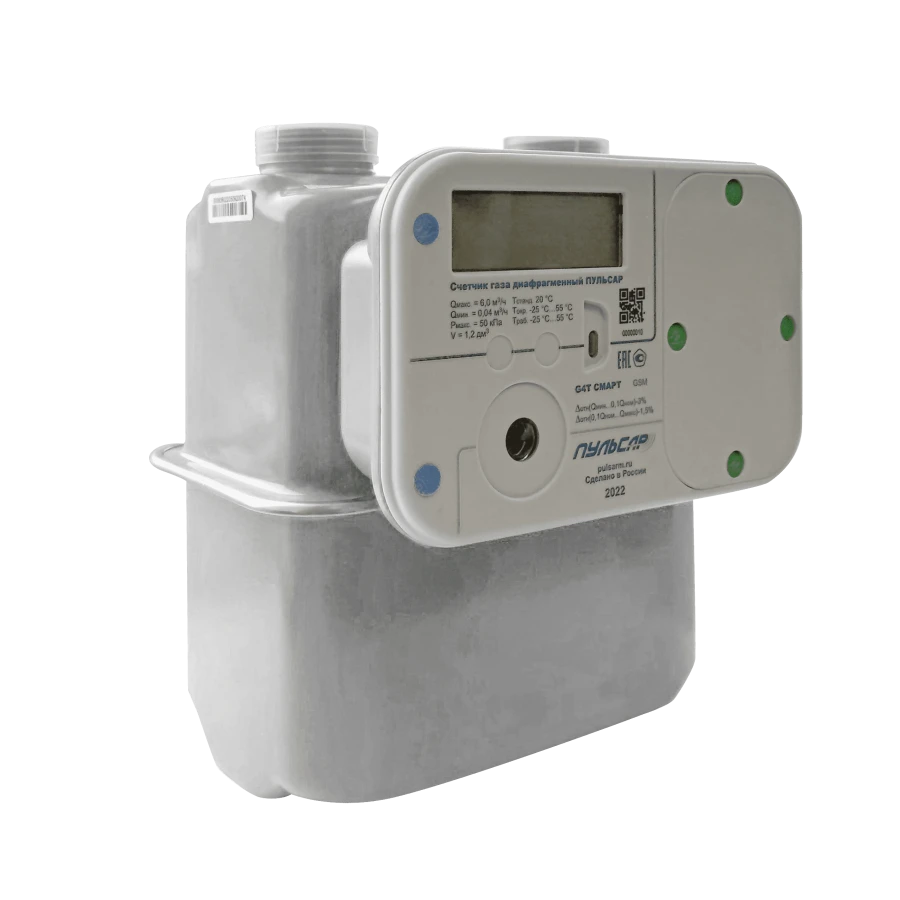

Diaphragm gas meter PULSAR SMART

Gas Consumption Meters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The meters provide calculation of the accumulated volume of gas, reduced to temperature plus 20 C with the help of electronic device TC, and pressure 101,325 kPa, taking into account conditionally constant substitution values of pressure and compressibility coefficient. The field of application of the meters is accounting of gas quantity consumption in gas supply systems for commercial calculations. The meters have an electronic readout device (hereinafter - EOD), which provides the possibility of displaying (viewing) the meter parameters, data archiving. The meters can be additionally equipped with a shut-off valve and a data transmission module, providing the possibility of remote switching off/on of gas supply by command of the automated gas metering control system and data reception/transmission. The counters can have an inbuilt sensor of the impact of a permanent external magnetic field.

Technical Specifications

Cycle volume, m3 (depending on size)	0.0012...0.015
Degree of enclosure protection	IP67 for version with built-in antenna; IP54 for version with external antenna
Gas pressure loss at Qmax, Pa, not more (depending on size)	200...300
Gas pressure loss at Qnom, Pa, not more (depending on size)	60...150
Minimum gas volume flow rate Qmin, m3/h (depending on size)	0.016...0.25
Nominal gas volume flow rate Qnom, m3/h (depending on size)	1.6...25
Maximum volumetric flow rate Qmax, m3/h (depending on size)	2.5...40
Size	G1,6 - G25
Type of product according to PP RF 616	Other tools and instruments for measurement, inspection and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
