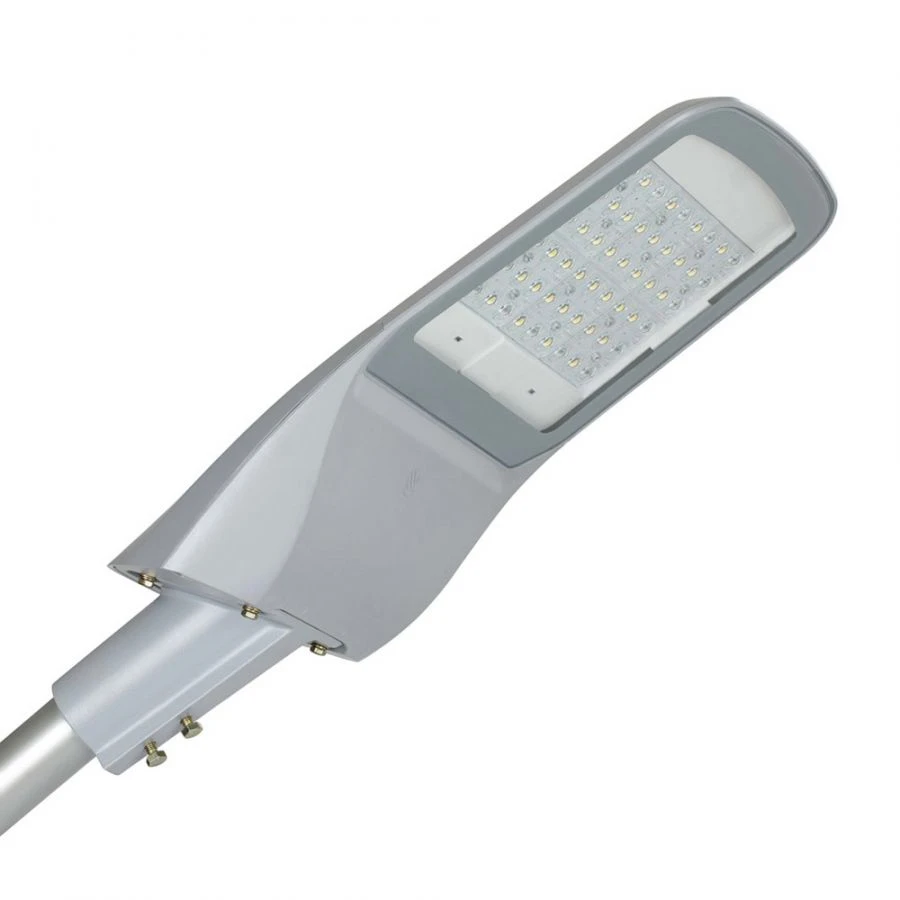

GALAD Wave Mini LED series luminaires

LED Lighting Fixtures

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Luminaires series GALAD Wave mini LED-(40; 60; 80) are designed to illuminate streets, roads, squares, boulevards, car parks, railway platforms, courtyards, areas in front of shopping centres, pedestrian crossings, etc. The design of the luminaires is designed for convenient maintenance during operation. High-quality sealing gasket provides a high degree of protection - IP65 against penetration of moisture and dust. The protective translucent plate is made of tempered silicate glass. The luminaire housings and seating are made of aluminium and protected by impact-resistant powder coating with high mechanical properties. Secondary optics of own production, providing a wide range of CCC. The use of LEDs as light sources eases the load on the city's electrical network and reduces the cost part of municipal and federal budgets.

Specifications

Type of product according to PP RF 616 Lighting fixtures and lighting fittings other than those included in other groupings

Power 40...80 W

Input voltage 220...240 V

Width 302 mm

Length 614 mm

Luminous flux, lm 4700...9500 lm

Type of supply current Variable

Rated supply voltage 230 V

Power consumption, W 40 W

Power factor 85

IK code 8

Correlating color temperature (CCT) 2700 K

Protection class against electric current I

Lower operating temperature value 45 °C

Net weight 7 kg

Color rendering index (Ra) 70

Height 105 mm

Housing material Aluminum

Upper operating temperature value 40 °C

Pulsation factor 5 %

Climatic version ?1

Type by installation location Cantilever

Climatic version ?1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
