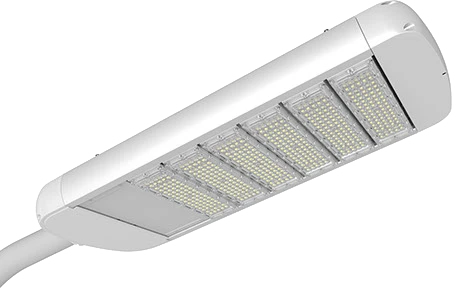

LED luminaire BL-LD-3C-6(XPL)

LED Lighting Fixtures

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

LED luminaire series BL-LD-3C(XPL) is designed for lighting of highways categories A,B,C (according to SP 52.13330.2016), city streets, as well as for external lighting of enterprises and shopping centres. The modern design of the luminaire was developed taking into account all requirements for protection against dirt and wind load. The housing is made of sheet aluminium by stamping method and coated with heat dissipating powder paint. The driver is equipped with a block of protection against voltage fluctuations in the power supply network (threshold of 320-380 VAC). At the moment of connection, the driver circuitry ensures minimum inrush currents. Protection against short circuits. Ultra-efficient LEDs brand OSRAM Opto Semiconductors.

Specifications

Type of product according to PP RF 616 Lighting fixtures and lighting fittings other than those included in other groupings

Type of supply current AC/DC

Degree of protection (IP) IP67

Upper operating temperature value plus 50 °C

Lower operating temperature value minus 60 °C

Color temperature 2700...6500 K

Power factor, greater than or equal to 0.9

Color rendering index (Ra), greater than or equal to 70

Supply voltage value 176...264 V

Mounting type Console

Luminous flux 36000...46800 lm

Power consumption 200...260 W

Maximum length 917 mm

Maximum width 380 mm

Maximum height 125 mm

Maximum weight 10.5 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
