LED luminaire LV-CITY G2 x12

LED Lighting Fixtures

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

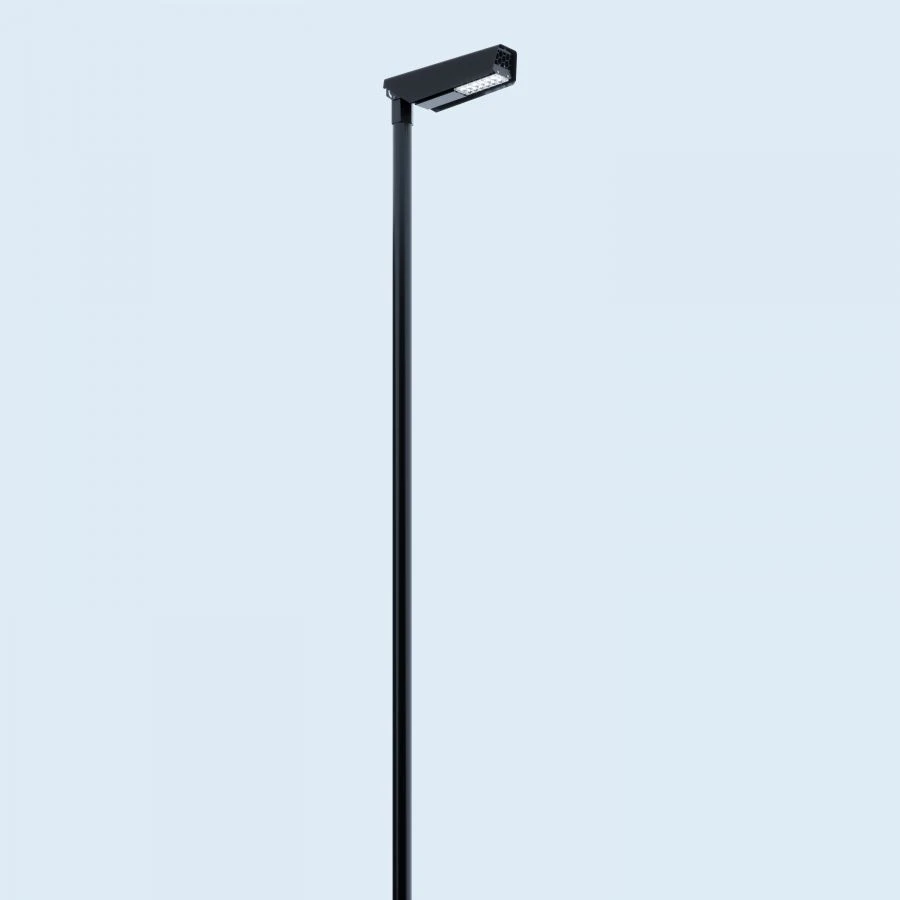

Designed for outdoor lighting of adjacent, courtyard areas, parks, paths, public spaces, as well as streets and roads. It has the ability to adjust the angle of inclination, which helps to better and easier to adjust the luminaire during installation.

Specifications

Type of product according to PP RF 616 Lighting fixtures and lighting fittings other than those included in other groupings

Light output, lm/W, not less than 115

Color rendering index (CRI), not less than 80

Degree of protection (IP) IP66

Power factor 0.95

Rated supply voltage 230 V

Type of supply current Variable

Designated service life B1/B8 2100/900 MHz a

Warranty period of operation 5 a

Type of conditional light intensity curve in the equatorial plane circularly symmetrical/axial/lateral/asymmetrical

Type of light intensity curve in characteristic meridional planes L/L/W/M/S

Light distribution class ?

Mains frequency SBVVBG

Type by installation location stationary, outdoor, pole-mounted

Climatic version UHL1

Pulsation factor 5 %

Luminous flux, lm 1820...3360 lm

Upper operating temperature value 45 °C

Power consumption 14...28 W

Housing material polymer-coated steel

Height 161 mm

Width 143 mm

Length 507 mm

Net weight 3.8 kg

Lower operating temperature value -40 °C

Protection class against electric current I

Correlating color temperature (CCT) 2700...6500 K

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
