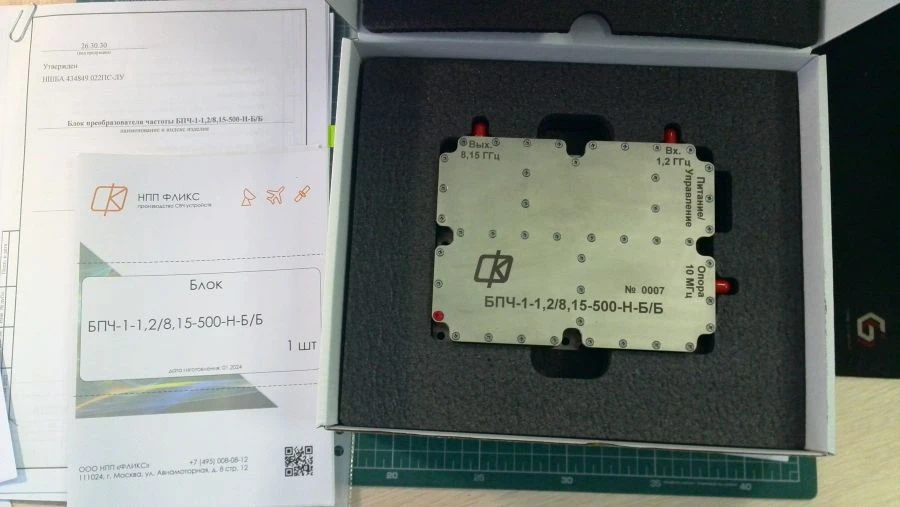

Frequency Transfer Block BPC-1-1.2/8.15-500-N-B/B Available for Import

Frequency Transfer Block BPC-1-1.2/8.15-500-N-B/B for Signal Processing Applications

Telecom Equipment Accessories
Manufacturer: FLIX LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

The device is designed to transfer the frequency spectrum from L band to X band, with 10 dB pass-through signal amplification. The filter at the output provides filtering of the conversion products, sum and difference of the received harmonics, suppression of the mirror channel. The bandwidth is 500 MHz.

Specifications

Input frequency range
950...1450
Output frequency range
7900...8400
Transmission coefficient (at least)
10
Frequency response irregularity (max.)
2
Input/output VSWR (max.)
1.5
1dB compression point output power (OP1dB, at least)
0.01 W
Heterodyne frequency attenuation (dBn, not less)
60
Frequency of the external reference oscillator
10
Internal reference oscillator
Armoured glass
Power supply voltage
B1/B8 2100/900 MHz V
Power consumption (max.)
8 W
Remote monitoring and control
Got it
List of controlled parameters
Status (faulty/faulty), PLL capture (there is capture/not), internal unit temperature (C), current current consumption (A)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
