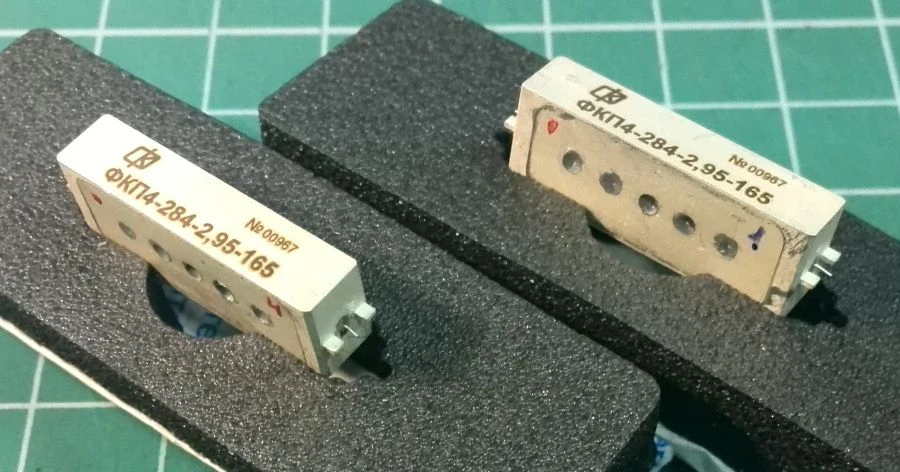

Ceramic Monoblock Bandpass Filter FKP4-284-2.95-165 for Reliable Signal Processing
Manufacturer:
FLIX LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The band-pass filter of the 5th order is made on the basis of a ceramic monoblock inside the housing - screen, which provides a low level of losses, high reliability and goodness at simultaneous minimisation of mass-dimensional parameters of the filter. The product is designed for operation in the UHF range and provides a bandwidth of 165 MHz relative to the centre frequency of 2950 MHz.
Specifications
Maximum input and output VSWR in the frequency band 2875 to 3025 MHz
1.4
Guaranteed attenuation (upper band 3160 to 3240 MHz)
49
Guaranteed attenuation (lower range from 0.1 to 2600 MHz)
58
Maximum insertion attenuation in the operating frequency range
1.5
30 dB level bandwidth
310...332
Bandwidth at 1 dB level
163...175
Center frequency
2950
