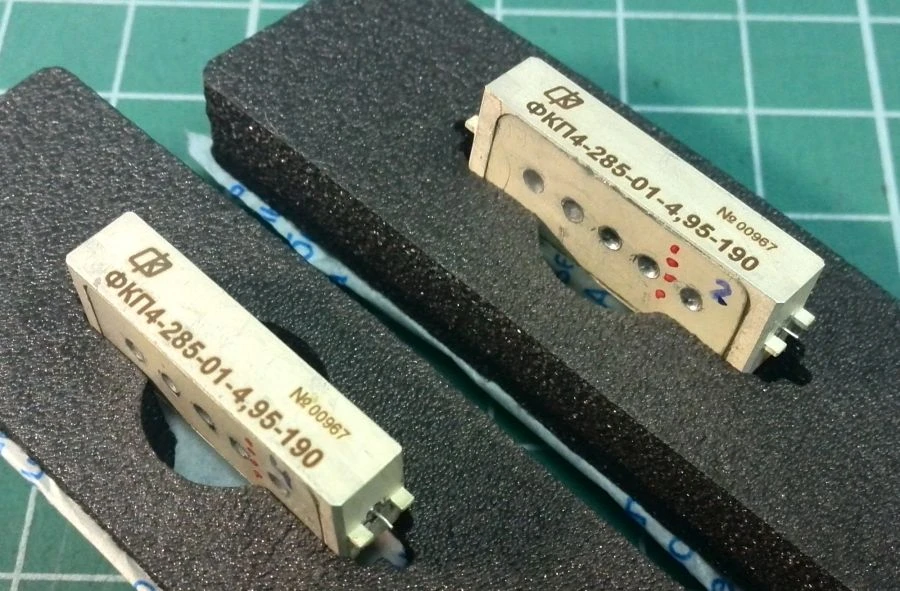

RF Band-Pass Filter FKP4-285-01-4.95-190 for Reliable Signal Processing

Telecom Equipment Accessories

Manufacturer: FLIX LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The band-pass filter of the 5th order is made on the basis of a ceramic monoblock inside the case - screen, which provides a low level of losses, high reliability and goodness at simultaneous minimisation of mass-dimensional parameters of the filter. The product is designed for operation in the UHF range (C-band) and provides a bandwidth of 190 MHz relative to the centre frequency of 4950 MHz.

Specifications

Maximum input and output VSWR in the frequency band 4855 to 5030 MHz

1.4

Guaranteed attenuation (upper band 5520 to 6000 MHz)

Guaranteed attenuation (lower band 4500 to 4645 MHz)

Maximum insertion attenuation in the operating frequency range

30 dB level bandwidth

375...410

Bandwidth at 1 dB level

180...198

Center frequency

4950
