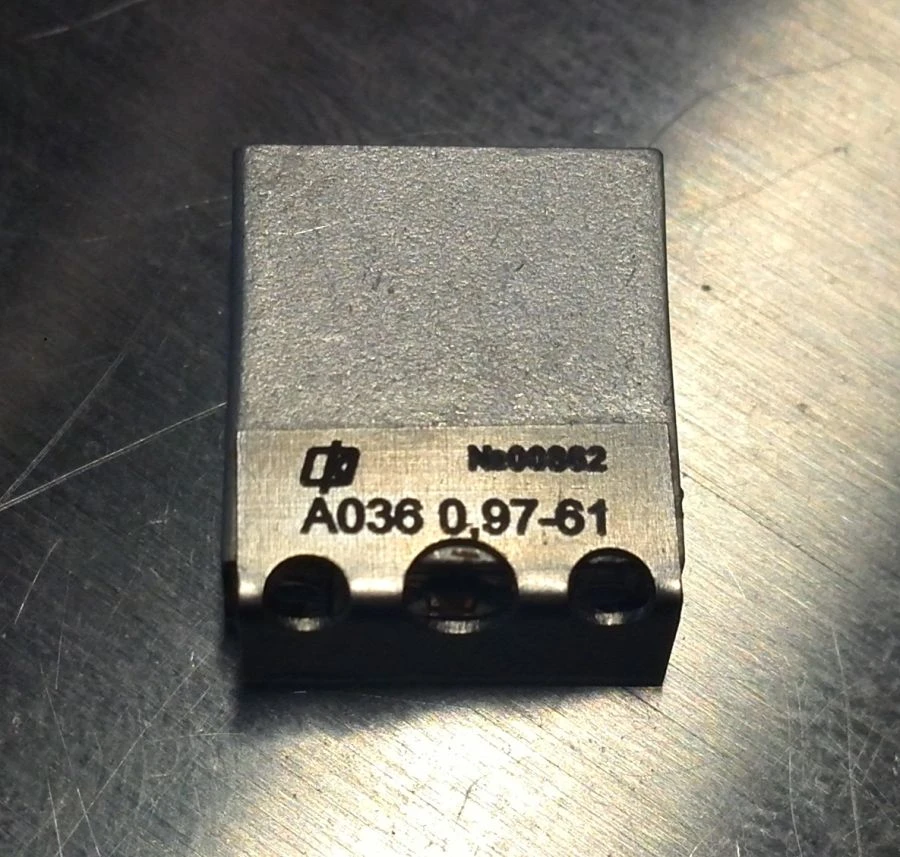

Ceramic Monoblock Bandpass Filter FKP1-210-17-0.97-61 for RF Applications
Manufacturer:
FLIX LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The band-pass filter of the 4th order is made on the basis of ceramic monoblock that provides low loss level, high reliability and goodness at simultaneous minimisation of mass-dimensional parameters of the product. The product is designed for operation in the UHF range and provides a bandwidth of 61 MHz relative to the centre frequency of 970 MHz.
Specifications
Maximum input and output VSWR in the operating frequency range
1.5
Guaranteed attenuation (upper band from 1090 MHz to 2100 MHz)
40
Guaranteed attenuation (lower range 0.1 MHz to 860 MHz)
40
Maximum insertion attenuation in the operating frequency range
1.8
Operating frequency range
939.5...1000.5
Center frequency
970
