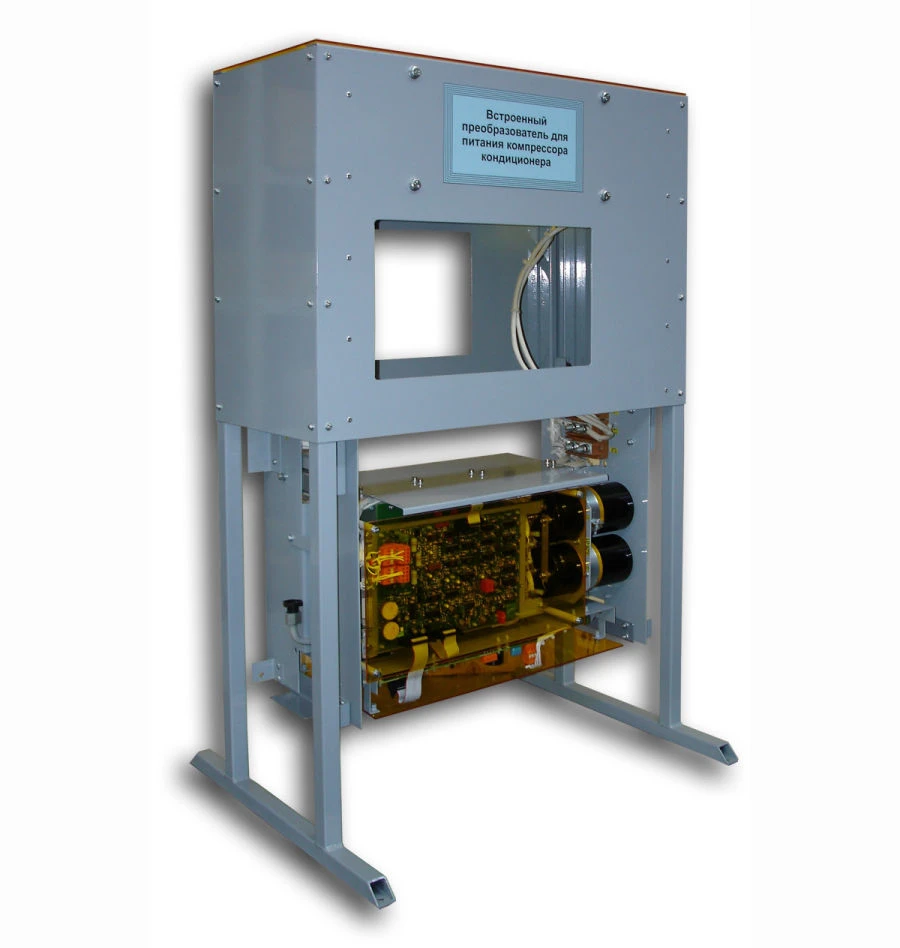

Frequency Converter PCh-18-U1 for Air Conditioner Control

Available for Import

Frequency Converter PCh-18-U1 for Optimizing Air Conditioner Performance

Static Power Converters

Manufacturer: GAMEM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The converter ??-18-?1 built into the design of the air conditioner is designed for frequency control of the speed of the asynchronous electric motor of the compressor, which is a part of the air conditioning and ventilation unit of passenger cars with autonomous power supply and electric trains. The converter provides conversion of DC voltage 87...142 V into AC voltage with adjustable frequency. IF-18-U1 is installed on passenger cars manufactured by GDR factory "Ammen-Dorf" during their overhaul and modernisation at Voronezh and Tambov car repair plants for power supply of climatic installation "BSC" (Baltic Air Conditioning Systems) and "DOCON" (Domodedovo air conditioners).

Structurally, the converter is designed as a small-sized unit with liquid cooling and a sliding part, which provides convenience in maintenance and repair. There are 227 units in operation.

Specifications

Overall dimensions (DxWxH)

572x282x248 mm

Input DC voltage

110 V

Nominal channel voltage

220 V

Rated frequency of channel

SBVVBG

Number of channel phases

3 pcs

Voltage regulation range

88...308 V

Frequency control range

20...70

Regulation law

U/f = Const

Output power of channel

Rated channel current

39 A

K.P.D. in nominal mode

Flat grinder, Specialised grinder %

Time of rise and fall of frequency and voltage of channels

3...60

10s delayed overload protection

1,15 ln

Instant overload protection

1,5In

Gross weight

52.5 kg

Weight of the sliding part

24.5 kg

Cooling

Liquid

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
