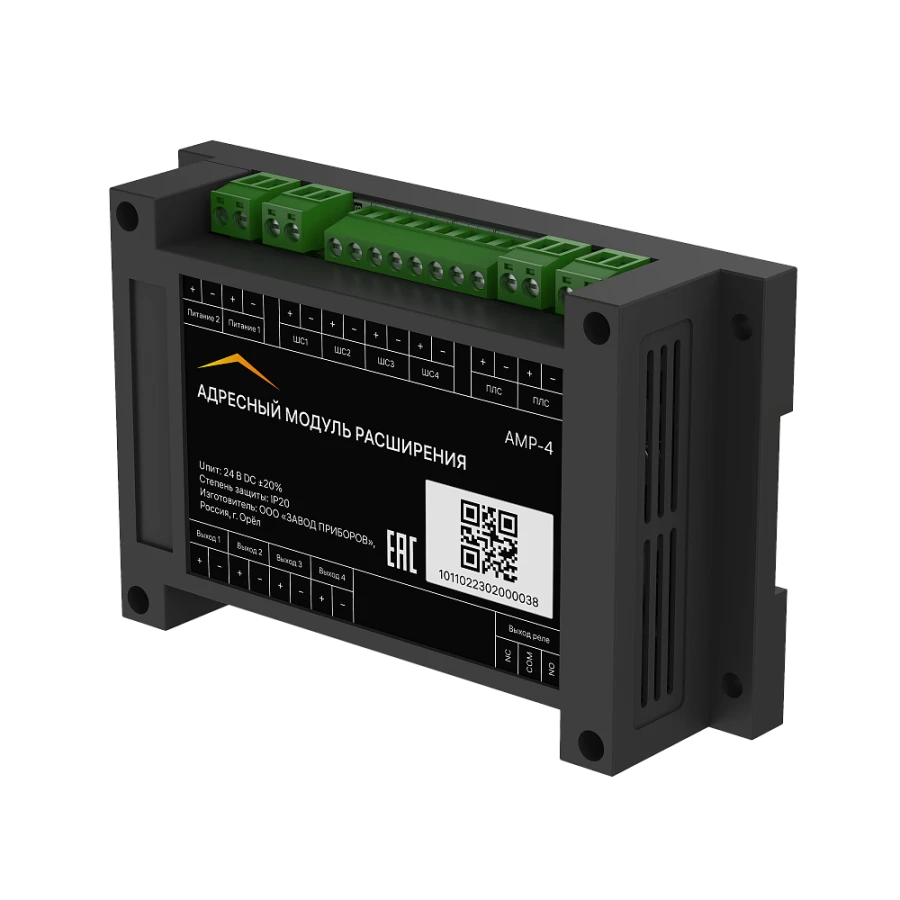

Addressable expansion module AMP-4 "RUBETEK"

Fire Alarm Detectors

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Addressable expansion module AMR-4 "RUBETEK" is designed to work as an addressable expander in the fire alarm system, as well as monitoring of alarm loops with non-addressable threshold wire detectors.

Technical Specifications

Communication interface	PLS.
Number of occupied address slots, not more than	10 pc
Standby power supply voltage	24 V
Main supply voltage	24 V
Maximum current consumption from 24 V power supply (excluding outputs)	0.05 A
Number of monitored loops with detectors	4 pc
Maximum number of detectors connected to each alarm loop, no more than	32 pc
Number of outputs with line open-circuit and short-circuit monitoring	4 pc
Maximum output load current	0.45 A
Output voltage	24 V
Number of dry contact outputs	1 pc
Maximum voltage on the "Dry contact" output load	250 V
Operating temperature range	-10...55 °C
Maximum load current of "dry contact" output	2 A
Relative humidity at + 40 deg. ?	0...93 %
Degree of enclosure protection	IP20
Dimensions (L x W x H), mm	145x90x41
Weight, not more	200 g
Average service life	10 a
Average MTBF	60000
Probability of failure-free operation in 1000 h	0.98

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
