Addressable analogue flame detector TULPAN 64/2 Ex-R3, IP 329/330-64/30-1

Fire Alarm Detectors

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The detector in explosion-proof version TULPAN 64/2 Ex-R3 is designed to detect the hearth of an open natural flame and the formation of fire notification when working in explosive mixtures of gases or vapours with air.
The detector is not intended for operation in underground workings of mines, mines and their above-ground structures, dangerous by mine gas and/or combustible dust.
Standard designation according to GOST R 53325 - ?? 329/330-64/30-1.
Class of the detector according to GOST R 53325 - 1.
Area of application - explosion hazardous areas of classes 1 and 2.
The detector is designed to work with devices PPKOPU "R3-Rubezh-2OP", PPKOPU 011249-2-1 "Rubezh-2OP" prot.R3 and controllers addressable devices "R3-Rubezh-KAU2", "Rubezh-KAU2" prot.R3.

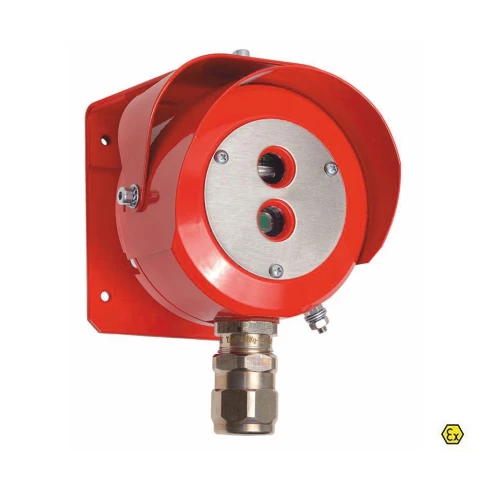

Structurally, the detector is made in the form of an aluminium housing with a canopy.

Technical Specifications

Type of communication line with child devices	address line
Operating temperature range	-55...55 °C
Explosion protection marking	1Ex d IIC T5 Gb X
Housing material	Aluminum
Degree of protection	Low
Power supply voltage	24...36 V
Degree of protection of the shell, IP	66
Weight	1.2 kg
Average service life	10 a
Maximum spectral sensitivity of IR channel, µm	4,3
Spectral sensitivity range of UV channel, nm	185-260
Assignment	Class 1 and 2 explosive hazardous areas

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
