Explosion-proof LED luminaire V3G-200AMS-SD-50-60-TM21/TM22

Advanced LED Lighting

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

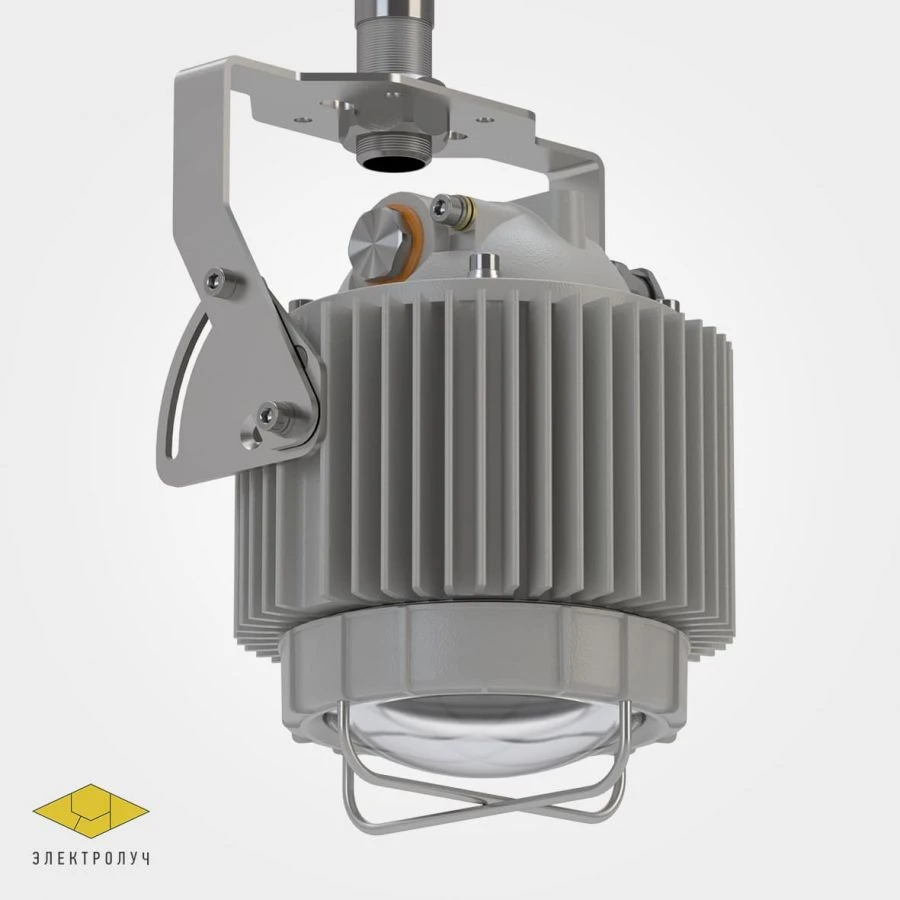

The luminaires are designed for outdoor and indoor lighting of industrial, production facilities, open areas and other areas where the presence of explosive atmospheres is possible. The power of the product is 50-60 W.
The luminaires are designed for operation in networks with nominal voltage of alternating current - 230 VAC. Mounting method: pipe mounting G3/4", swivel bracket, 1-2 cable glands. The luminaire has several types of diffusers:
polycarbonate, borosilicate glass, borosilicate glass with protective mesh. The luminaires can be operated in the temperature range from - 60°? to +55°?. Climatic execution and placement category according to GOST15150: U1, UHL1, OM1. Degree of protection IP: 66, 67, 68.

Specifications

Type of product according to PP RF 616 Lighting fixtures and lighting fittings other than those included in other groupings

Power consumption 50...60 W

Type of supply current AC

Protection class against electric current Grade I

Luminous flux 7200...8100 lm

Pulsation factor 1 %

Correlated color temperature 5000 K

Housing material Aluminum alloy with magnesium content less than 7.5 %

Climatic version U1; UHL1; OM1

Power factor 0.95

Degree of protection (IP) IP66; IP67; IP68

Length 175...240 mm

Width 205 mm

Height 265...280 mm

Net weight 5...5.5 kg

Gross weight 5.3...5.8 kg

Input voltage 230 V

Operating temperature conditions -60...55 °C

CRI color rendering index 70

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
