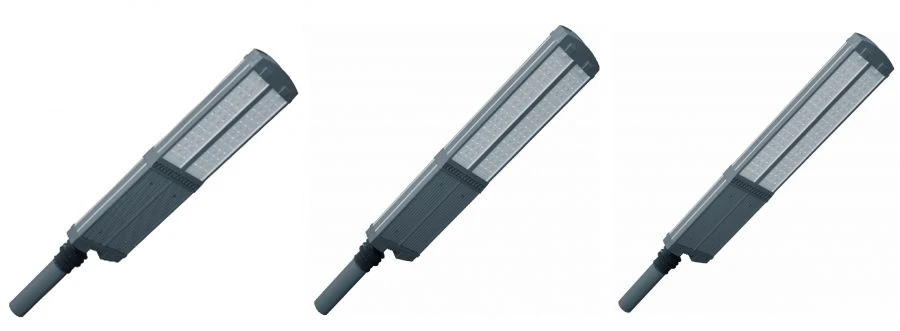

General-purpose stationary LED luminaires for street and road lighting, MAG4 series, power 155-270W

Magistral cantilever LED luminaires with built-in electronic power supplies are designed for lighting of roads of categories A, B and C, streets of all categories, territories of neighbourhoods, squares, car parks, petrol stations, factory territories, railway platforms, construction sites, etc. Patented "floating" design of LED module mounting allows to compensate for the difference in thermal expansion coefficients of LED boards and group lenses. The absence of holes for fastening (with self-tapping screws), significantly improves resistance to climatic influences. The driver has no thermal contact through the metal with the LED module and is equipped with its own heat sink. The design of the luminaire allows the driver to be replaced without tools in 2-3 minutes.
