LED luminaire TEGAS Kuban-70

Advanced LED Lighting

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

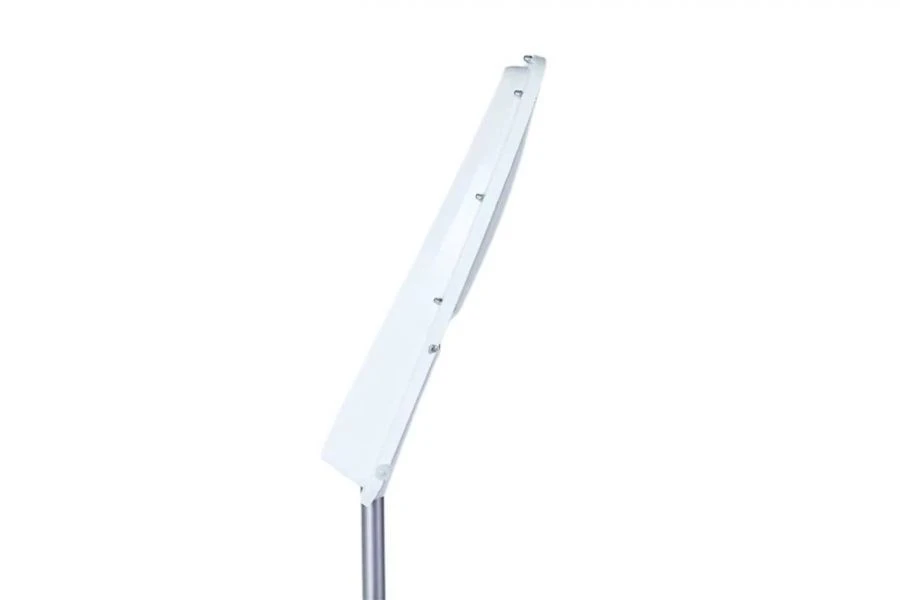

Console LED luminaires are designed for mounting on standard street lighting poles. They can also be mounted on the wall by means of a bracket with adjustment of the angle of inclination of the luminaire. Installation height from 4 to 12 metres. To create the required level of illumination the luminaires are equipped with secondary optics KSS "Sh". The body of the luminaire is white, steel, powder painted. Fully protected against moisture and dust - degree of protection IP65.
Most popular for lighting:
city streets, roads;
motorways and highways of category "A", "B", "C";
squares, park areas;
courtyard areas;
car parks;
railway station platforms;
industrial territories;
petrol stations.

Specifications

Type of product according to PP RF 616 Lighting fixtures and lighting fittings other than those included in other groupings

Input voltage range 165-265 VAC

Power 70 W

Luminous flux 8400 lm

Light temperature 4000...6000 K

Dissipation angle 160

Type of light intensity curve (LIC) Road: Asymmetrical, Semi-Wide "L", Wide "W", Wide Side "WB"

Pulsation factor 0.9 %

Protection class IP-65

Overall dimensions 612x287x120 mm

Operating temperature -40 to +40 °C

Light Transmittance Index at least 80RA

Weight 3.25 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
