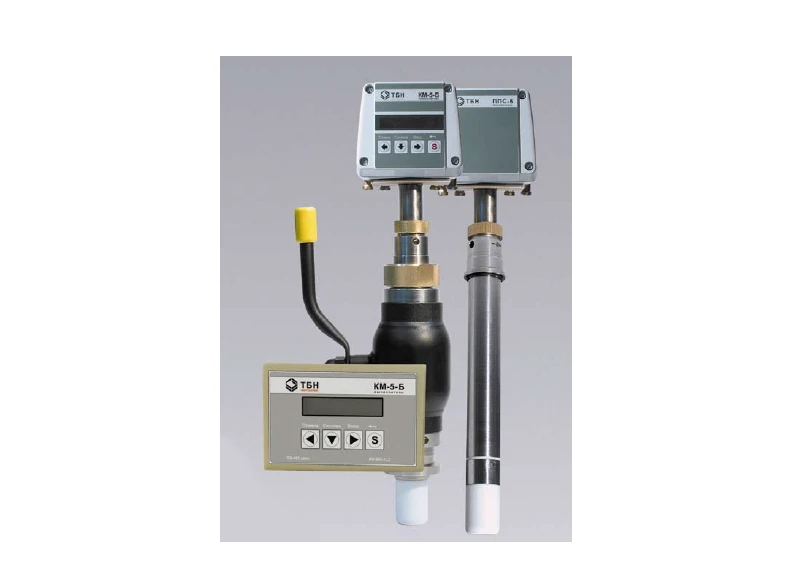

Electromagnetic heat meter KM-5-B3-4

KM-5 heat meters are designed for measuring heat energy, volumetric and mass flow rate, volume, mass and parameters of heat carrier in water heating systems. Additionally, volumetric and mass flow rate, volume, mass and medium parameters can be measured in hot and cold water supply systems. KM-5-B3-4 modification should be used for GHE and consist of PRB-3 installed on the supply pipeline, to the electronic blocks of which a set of thermal converters installed on the supply and return pipelines should be connected. Additionally, pressure sensors installed on the supply and return pipelines should also be connected.
