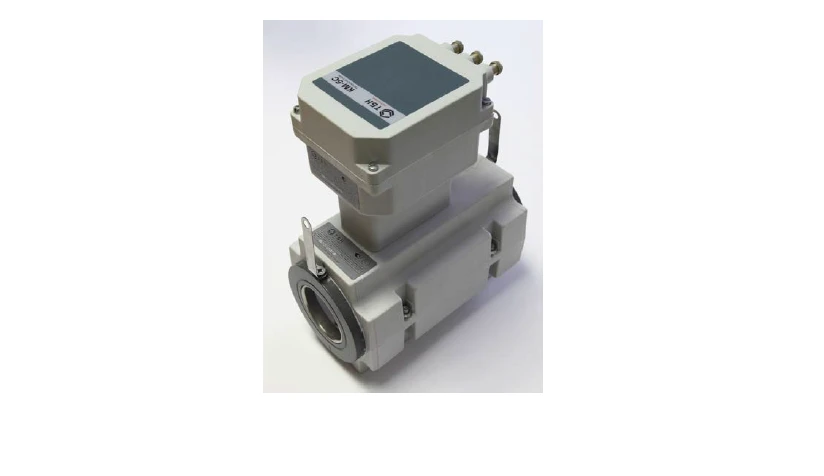

Electromagnetic Heat Meter KM-5-6 for Measuring Thermal Energy in Heating Systems

KM-5 heat meters are designed to measure heat energy, volumetric and mass flow rate, volume, mass and parameters of the heat carrier in water heating systems. Additionally, volumetric and mass flow rate, volume, mass and medium parameters can be measured in hot and cold water supply systems. KM-5-6 modification should be used for GHE at consumers and consists of a set of thermal converters installed on the supply pipeline and a set of thermal converters installed on the supply and return pipelines should be connected to the electronic block. Additionally, pressure transducers installed on the supply and return pipelines and/or a volume transducer installed on the DHW pipeline should be connected as well. A second PDE must be installed on the return pipeline, to the electronic unit of which the temperature transmitter installed on the DHW pipeline must be connected.
