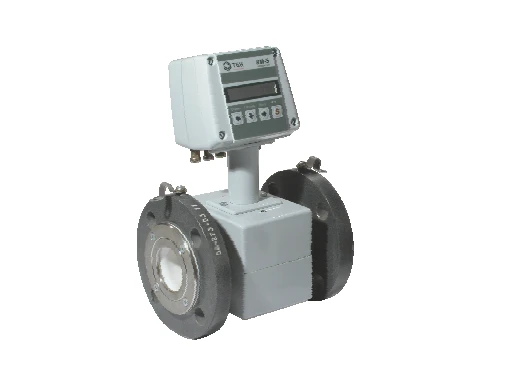

Electromagnetic Heat Meter KM-5-2 for Accurate Energy Measurement

KM-5 heat meters designed for measuring heat energy, volumetric and mass flow rate, volume, mass and parameters of heat carrier in water heating systems. Additionally, volumetric and mass flow rate, volume, mass and medium parameters can be measured in hot and cold water supply systems. The KM-5-2 modification should be used for GHE at consumers and consists of a PRE installed on the supply pipeline, to the electronic unit of which a set of thermal converters installed on the supply and return pipelines should be connected. Additionally, pressure transducers installed on the supply and return pipelines and/or a volume transducer on the DHW or HTW pipelines should also be connected. To monitor leakage from the heating medium network, a second pressure transducer must be installed on the return pipe.
