Available for Import

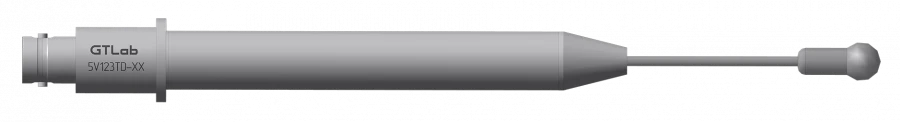

Dynamic Pressure Sensors with Spherical Sensitive Element 5V123TD-XX for Liquid and Gas Applications
Manufacturer:
GTLAB LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Dynamic pressure sensors with spherical sensing element are designed for measuring parameters of shock waves and rapidly variable pressures in liquid and gaseous media.
Specifications
Type of product according to PP RF 616
Instruments and other instruments for measurement, control and testing
Upper measurement limit
1 000 kPa | 2 500 kPa | 6 000 kPa | 10 000 kPa
Conversion factor
5 mV/kPa | 2 mV/kPa | 0.8 mV/kPa | 0.5 mV/kPa
Limits of permissible basic error reduced to the upper limit of measurement
± 2%
Natural frequency in fixed state
> 25 kHz
Operating temperature range
- 30 ... + 50 °?
Output impedance
< 100 ohms
Power supply: ? voltage ? current
+ (15 ... 30) V 2 ... 20 mA
DC output voltage level
8 ... 11 ?
Sensing element material
CTC-19
Housing material
stainless steel
Housing design
smooth
Degree of protection against external influences
IP65
Weight (without cable and connector)
110 ?
Type of product according to PP RF 616
Other instruments and apparatus for measuring, controlling and testing; Industrial measuring and controlling machines; Other instruments and apparatus for measuring, controlling and testing.
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
