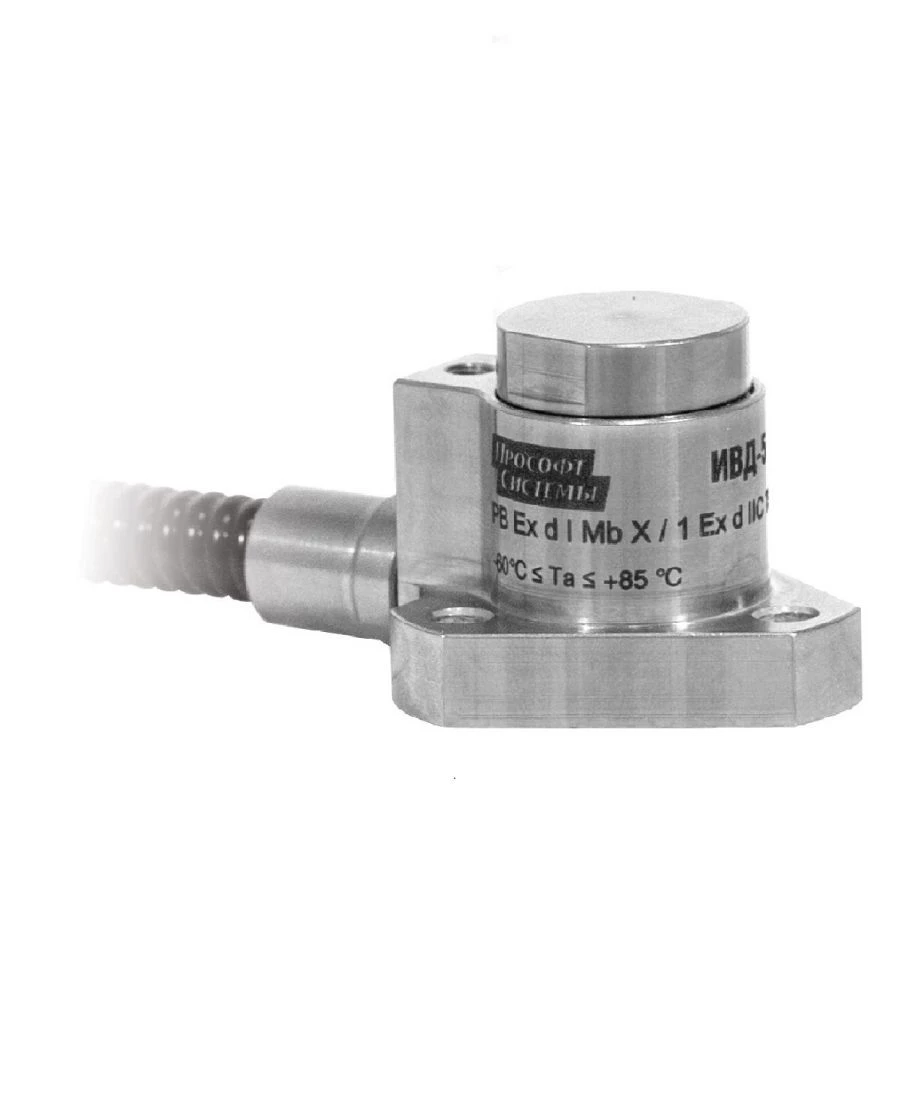

IVD-5 Vibration Sensors for Accurate Measurement of Vibration Parameters

Vibration sensors IVD-5 are designed to measure the root mean square value (RMS) of vibration velocity, RMS of vibration acceleration, instantaneous value of vibration acceleration and vibration displacement in the direction perpendicular to the surface of the equipment at the point of contact of the sensor.

The sensors are designed for vibration control and protection of turbine units, pumps, motors and other industrial equipment installed in hazardous and explosion-proof areas, as well as in mines and underground workings (for type of explosion protection 0 Ex ia IIC T5 Ga X / PO Ex ia I Ma X).
The sensors of IVD-5C version provide:
- measurement of vibration velocity RMS, vibration acceleration RMS, vibration displacement range along one spatial direction;
- generation of data array of instantaneous vibration acceleration value for its transmission to the upper level for further signal decomposition by frequency components using the fast Fourier transform method;
- data exchange via RS-485 interface (Modbus RTU protocol)
