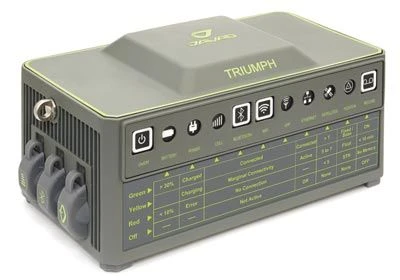

GNSS-receiver satellite geodetic multi-frequency TRIUMF-3 DRSHA.464345.015 TU
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
New powerful and reliable receiver for high-precision navigation systems based on VLSI with 864 channels, equipped with built-in 4G/LTE/3G module, with removable microSD and microSIM cards, supports "Lift&Tilt" technology.
The TRIUMF-3 receiver can operate as a base receiver, as a rover with subsequent data processing, as a Continuously Operating Reference Station (CORS) or portable base station for RTK applications, and as a scientific station collecting information for individual studies such as, for example, ionosphere monitoring. In short, it includes everything you need to get the job done with quality and high performance.
4G/LTE module
Wi-Fi 5 GHz and 2.4 GHz (802.11 a, b, g, n, d, e, i)
Dual-mode Bluetooth and Bluetooth LE
Full duplex 10BASE-T / 100Base-TX Ethernet port
High-speed USB 2.0 Host (480Mbps)
High-speed USB 2.0 Device (480 Mbps)
High-performance microSD card (microSDHC) up to 128 GB Class 10
"Lift & Tilt".
The TRIUMF-3 receiver can operate as a base receiver, as a rover with subsequent data processing, as a Continuously Operating Reference Station (CORS) or portable base station for RTK applications, and as a scientific station collecting information for individual studies such as, for example, ionosphere monitoring. In short, it includes everything you need to get the job done with quality and high performance.
4G/LTE module
Wi-Fi 5 GHz and 2.4 GHz (802.11 a, b, g, n, d, e, i)
Dual-mode Bluetooth and Bluetooth LE
Full duplex 10BASE-T / 100Base-TX Ethernet port
High-speed USB 2.0 Host (480Mbps)
High-speed USB 2.0 Device (480 Mbps)
High-performance microSD card (microSDHC) up to 128 GB Class 10
"Lift & Tilt".
Specifications
Number of channels
864
Operating temperature range
-40...60 °C
Received signals
GPS C/A, L1C(P+D), P1, P2, L2C(L+M), L5(I+Q) GLONASS C/A, P1, P2, L2C, L3(I+Q) Gallileo E1(B+C), E5A(I+Q), E5B(I+Q), AltBoc, E6(B+C) QZSS C/A, L1C(P+D), L2C(L+M), L5(I+Q), SAIF, LEX(P+D) BeiDou B1, B1-2, B1C(P+D), B5A(I+Q), B2, B5B(I+Q), B3 SBAS L1, L5 IRN
Offline accuracy (rms)
2 m
Источник электропитания напряжения, внутренний литий-ионный аккумулятор
7.2 V
Источник электропитания напряжения, внешний аккумулятор
10...30 V
