Available for Import

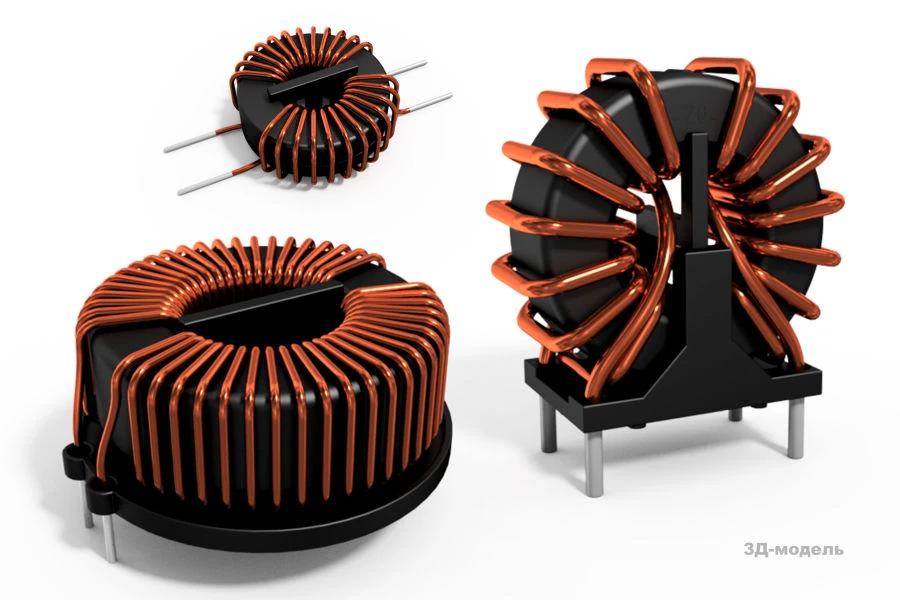

DS2 Series Double Winding In-phase Chokes

Inductive Coils & Chokes

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The chokes of in-phase filtering of radio interference DS are used for suppression of radio interference in electrical, radiotechnical and electronic products, equipment and apparatus for industrial and technical purposes with operating voltage up to 400 V 50 Hz AC, as well as in the input and output DC circuits of power supply sources from 12 to 400 V.

Technical Specifications

DC resistance of windings	Not more - 1.2 to 93 mOhm
Scattering inductance	Not more than 100 kHz - 1.7 to 44 mGN
Insulation resistance between windings (100 V)	MOM - 6000
Electrical strength of insulation between windings: AC test voltage, V	? - 2500
Impedance	+40/-25%, 100 kHz - 0.33 to 23.3 kOhm
Nominal inductance	+40/-25%, 100 kHz - from 0,27 to 16,2 mGn
Maximum current, A	2 to 35

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
