Block of inductive shunts BISH-83-U1

Inductive Coils & Chokes

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

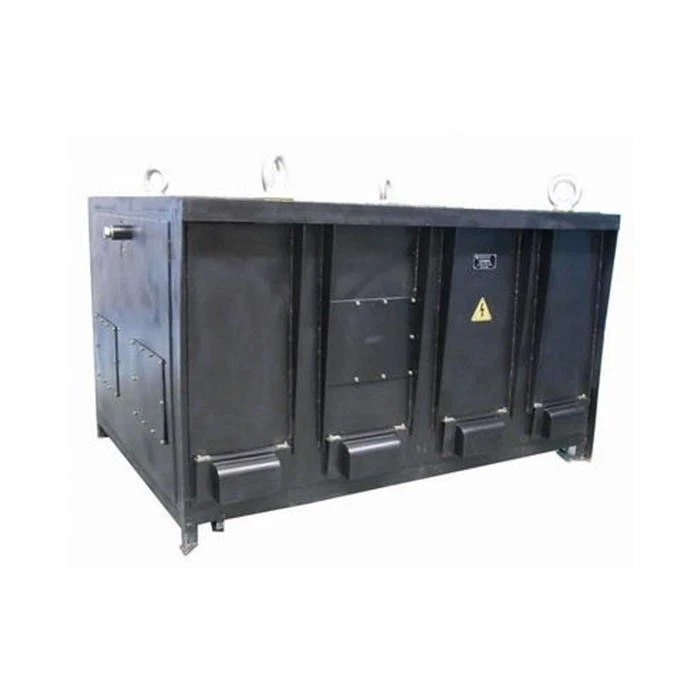

Block of inductive shunts BISH-83-U1 is designed to reduce current surges and improve commutation of traction motors during transients with weakened excitation in traction mode of electric locomotives of EP2K type.

Technical Specifications

Operating temperature range	60 °C
Nominal voltage	3000 V
Rated current	340 A
Inductance at 100 A current (ISH-83-U2)	0.0085
Inductance at 100 A current (ISH-83-01-U2)	0.017
Inductance at 340 A current (ISH-83-U2)	0.006
Inductance at 340 A current (ISH-83-01-U2)	0.012
Electrical resistance of shunt coils to direct current (ISH-83-U2)	0.0082 ohm
Electrical resistance of shunt coils to direct current (ISH-83-01-U2)	0.0164 ohm
Weight of ISH-83-U2	900 kg
Weight of ISH-83-01-U2	900 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
