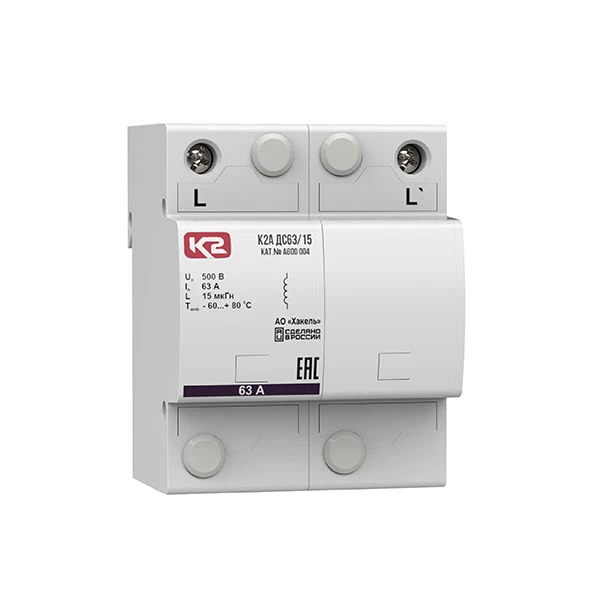

Impulse isolating choke K2A DS63/15, cat. no. ?600 004

Inductive Coils & Chokes

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Pulse isolating choke K2A DS63/15 is intended for coordination of operation of ultrasonic devices of test class I, made on the basis of arresters, and ultrasonic devices of test class II, made on the basis of varistors, in case the distance between them on the power supply cable is less than 10 metres.

Specifications

Overall dimensions (HxWxH), mm 92x72x66

Weight 600 g

Operating temperature -60...80 °C

Inductance 15 µHn

Rated current 63 A

Nominal system voltage 500 V

Current type DC/variable, 50 Hz

Mounting DIN rail 35 mm
