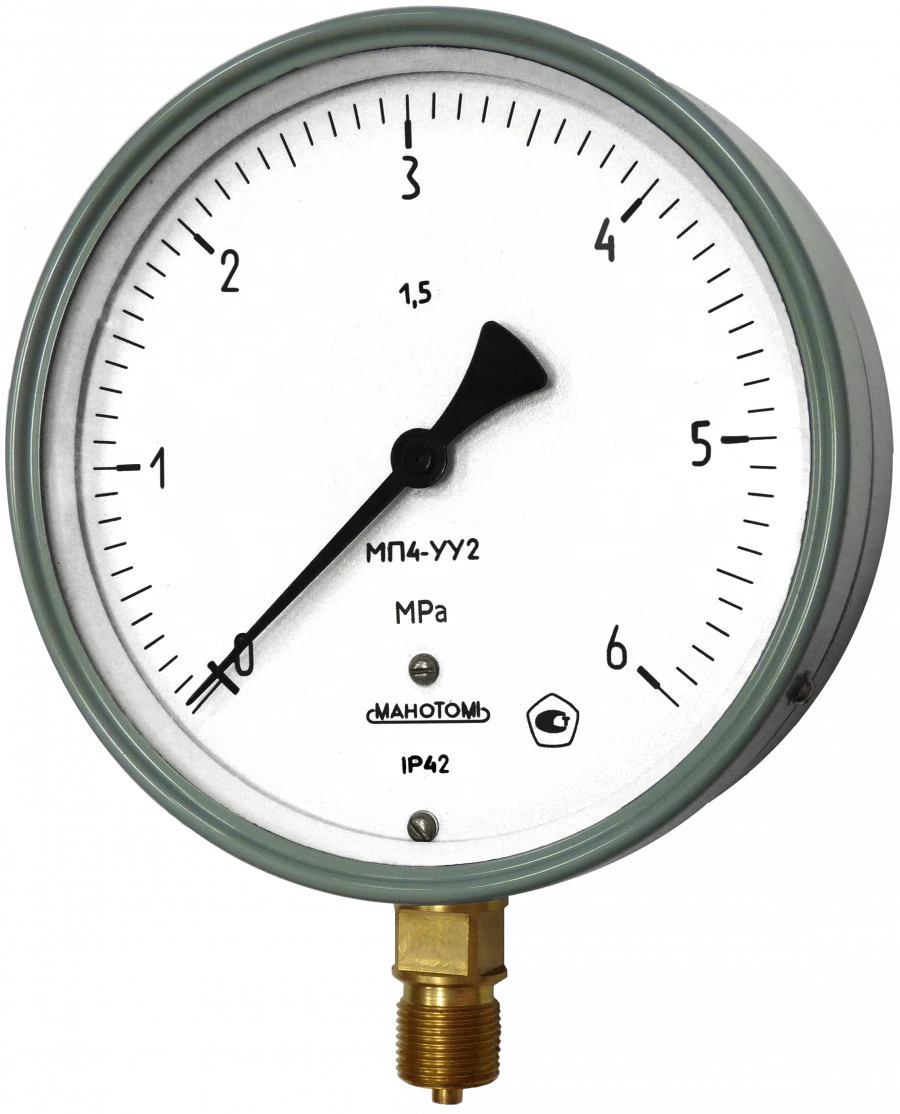

Indicating pressure gauges MP4-U

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

Designed for measuring overpressure of non-aggressive, non-crystallising liquids, steam and gas, including oxygen, acetylene.

Design options radial socket without flange, radial socket with rear flange, axial socket without flange, axial socket with front flange

Fitting threads M20x1,5-8g, G1/2-B- for all reading ranges; K1/2" for reading ranges up to 600kgf/cm²

Inspection interval 2 a

Climatic version U2; T2

Warranty period 3 a

Accuracy class 1.5; 1.0 - by order, except MP4-U at 0.6 kgf/cm^2

Body diameter 160 mm

Degree of protection IP42 (optional IP53, IP54)

Measuring range 0 to 0.6... 1600kgf/cm²

Housing material steel; aluminum alloy; impact resistant polystyrene
