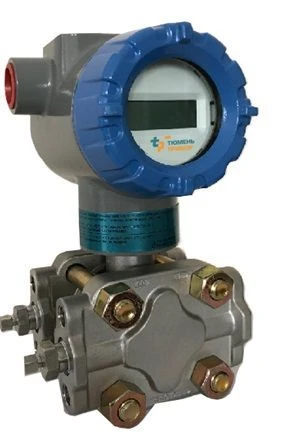

Pressure transmitter series ST 800
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
They are used for continuous conversion of the measured parameter into a unified current output signal of automatic control, regulation, process control systems in various industries.
ST 800: measurement error - up to 0, 065% of the measuring range; stability of readings - no more than 0, 02% of the range per year during 10 years; response time - up to 100 ms; scale readjustment range 100:1; service life - up to 20 years; calibrated measuring range - 1.
Operating conditions:
- for sensors of explosion protection version Exd, Extb ambient temperature, from -60 to +70 °?
- for sensors of explosion protection version Exi ambient temperature, from -60 to +85 °?
- for LCD display, -20 to +70 °?. . . .
ST 800: measurement error - up to 0, 065% of the measuring range; stability of readings - no more than 0, 02% of the range per year during 10 years; response time - up to 100 ms; scale readjustment range 100:1; service life - up to 20 years; calibrated measuring range - 1.
Operating conditions:
- for sensors of explosion protection version Exd, Extb ambient temperature, from -60 to +70 °?
- for sensors of explosion protection version Exi ambient temperature, from -60 to +85 °?
- for LCD display, -20 to +70 °?. . . .
Specifications
Basic reduced error
0.055 %
Range reconfiguration depth
100:1
Hydrostatic pressure (HP), upper measuring limit
700
Differential pressure (DP), upper measuring limit
21 MPa
Overpressure (OD), upper limit of measurement
69 MPa
Absolute pressure (YES), upper measuring limit
21 MPa
Warranty period
3...5 a
Output signal, mA
4...20
Dustproof
IP66/IP67
Execution
Exd+Exi
Stability of readings
0.01 %
Scale readjustment range
100:1
Accuracy
0.0375 %
Hydrostatic pressure (DH) (submersible)
700
Inspection interval
2 a
Electromagnetic compatibility (EMC)
Armoured glass
Alarm devices (optional)
Armoured glass
Climatic designs
-60+70
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
