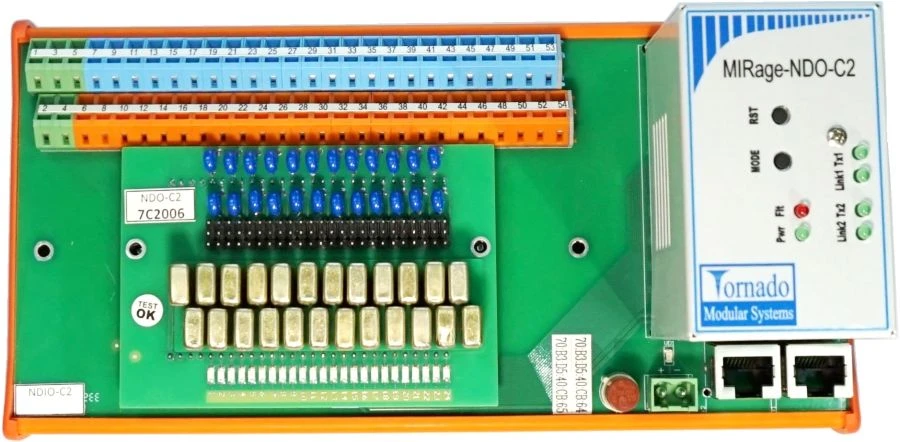

Discrete Output Device MIRage-NDO-C2 for 24 Signals, Reliable Signal Switching

Automatic Control Devices

Manufacturer: Tornado Modular Systems LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The MIRage-NDO-C2 devices are designed to generate low-power discrete signals of direct and alternating current. Channel switching is carried out through relay contacts. Relay contacts are switchable, the switching contact is common for all channels, and for each channel the type of connected contact can be selected: normally open or normally closed.

The selection is made by means of jumpers installed on the interface board. The relay is controlled via a redundant Ethernet 10/100 twisted pair digital interface using the ModBus protocol. MIRage-NDO-C2 devices have 24 output discrete channels (DC).

The nominal switching voltage is 24 V. DC have a group galvanic isolation from the system part.Devices MIRage-NDO-C2 are designed to create automated process control systems (ACS) in various industries.

Specifications

Discrete signal levels

5-36V (ASC); 4-48V (DC)

Request response time at 100 Mbit network speed, no more than

Mechanical design

DIN rail mounting

Interface type

Ethernet 10/100BaseTX - 2 channels

Data transfer rate

100

Data exchange protocol

Modbus TCP/UDP slave

Galvanic insulation

Group

Overall dimensions

216x108x111 mm

Weight, not more

700 year

Wago terminal block, conductor cross-section up to

2.5 mm²

Consumption current, max.

475 mA

External supply voltage (+/- 15%)

24 V

Number of discrete output channels

24 pcs

Switched current

0.8 A

Operating temperature range

-25...70 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
