Discrete I/O device. 12 input signals 24 V AC/DC, individual galvanic isolation, possibility of connection to the digital input/

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

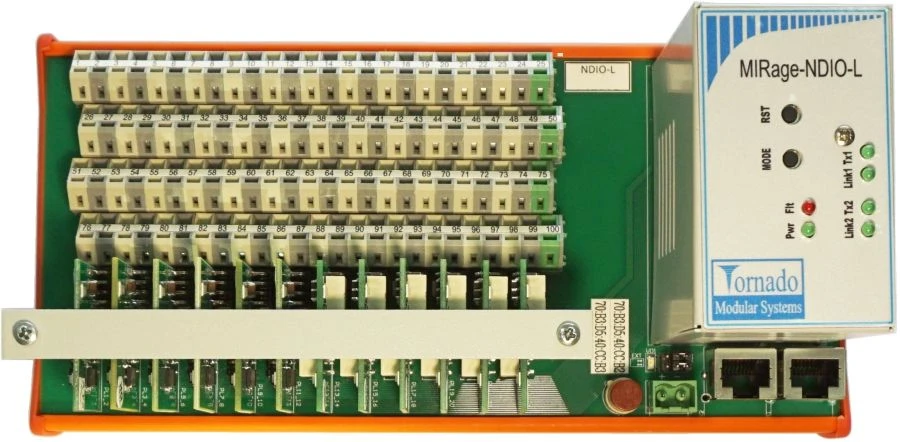

The MIRage-NDIO-L devices are designed for input and/or output of discrete signals of low voltages (up to 50 V) when building distributed information and control systems. Reading of states of signals of discrete inputs and issuing of control commands to discrete outputs is performed via duplicated digital interface Ethernet 10/100 over twisted pair using ModBus protocol. MIRage-NDIO-L devices have 24 discrete channels (DCs). The DCs, in groups of two, can be configured by direction: to be input (DI) or output (DO) DCs. The direction types of the DCs are determined by the software configuration of the device and the installation of the appropriate types of removable matching modules. There are modules for matching digital inputs and modules for matching relay digital outputs. DCs have galvanic isolation from each other and from the system part.MIRage-NDIO-L devices are designed to create automated process control systems (APCS) in various industries.

Specifications

Number of discrete I/O channels 24 pc

Type of output signals Switched relay contacts

External supply voltage (+/- 15%) 24 V

Consumption current, max. 80 mA (not including current consumption of submodules)

Operating temperature range -25...70 °C

Wago terminal block, conductor cross-section up to 2.5 mm2

Weight, not more 800 g

Overall dimensions 216x108x111 mm

Galvanic insulation Individual

Data exchange protocol Modbus TCP/UDP slave

Data transfer rate 10

Interface type Ethernet 10/100BaseTX - 2 channels

Mechanical design DIN rail mounting

Request response time at 100 Mbit network speed, no more than 2

Maximum current consumption 353 mA

Type of input signals 24 V (AC/DC)

Levels of discrete output signals 0-50V (AC/DC)

Levels of discrete input signals 0-36 V (AC/DC)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
