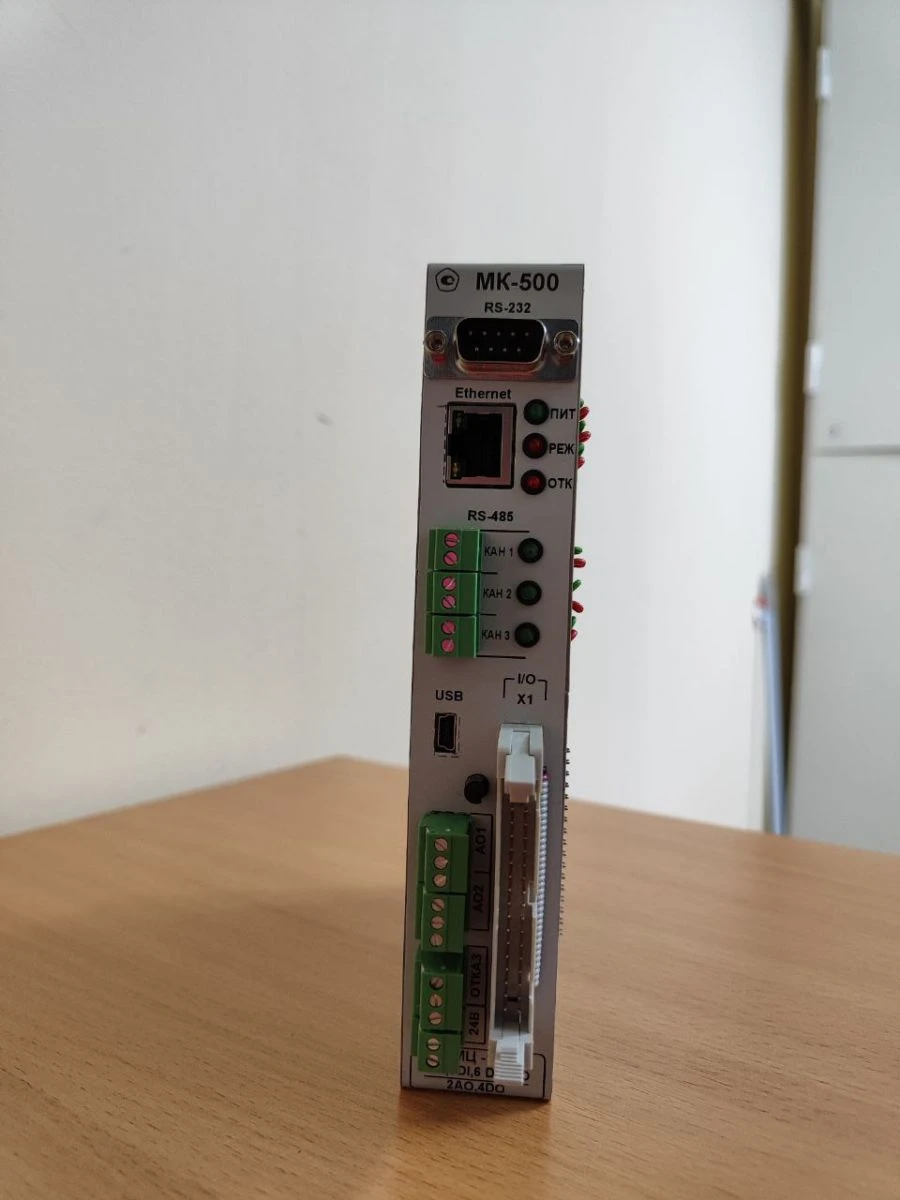

Minicontroller MK-500-10 KGZhT.421459.011

Minicontroller MK-500-10 is intended for construction of autonomous systems of automatic control of technological units, as well as for creation of separate subsystems of automatic control as a part of automatic process control system. Analogue inputs and outputs of MK-500-10 have individual galvanic isolation. The type of analogue input and output signal (0-5) mA or (0 (4)-20)mA is selected by software. MK-500-10 discrete inputs and discrete outputs have group galvanic isolation. Voltage of discrete input and output signals = (24) V, maximum output current - 0,3 A. Type and number of inputs and outputs:4AI, 2AO, 8DI, 4DO, DIO6.
