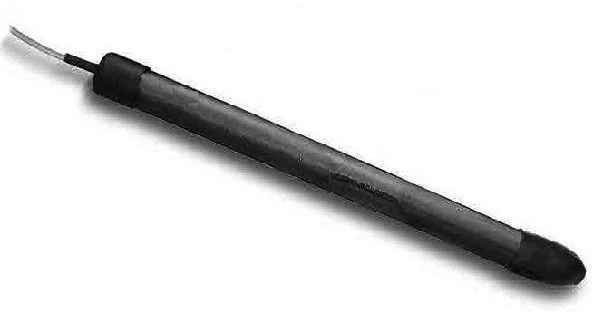

Subsurface Anode Grounding Rod AZ-TES with Titanium Electrode and MMO Coating, 25mm Diameter

Available for Import

Subsurface Anode Grounding Rod AZ-TES for Effective Corrosion Protection

Low-Voltage Electrical Panels

Manufacturer: TECHENERGOSNAB LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

AZ-TPP ANODE EARTH PLACEMENTS with titanium working electrode with MMO coating, 32 mm diameter, subsurface

Description

Anode earthing devices AZ-TPP are used in systems of electrochemical protection against corrosion of steel pipelines and structures. The products are used as part of cathodic protection installations to ensure the flow of protective current into the electrically conductive external environment. AZ-TPPs for subsurface installation consist of a low-soluble working electrode T25 with MMO coating, a contact unit and a conductive electric cable. An electrical cable is connected to the working electrode. The contact unit of the cable connection is hermetically sealed.

Specifications

Climatic version

Type of climatic version O of placement category 5 according to GOST 15150 for ambient temperature from minus 20 C to plus 60 C

Service life, at least

30 years

Subsurface AZ length (not including the length of the connection cable)

1000 mm

Diameter

25 mm

Wall thickness

1 mm

Nominal mass of the working electrode

2 kg

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
