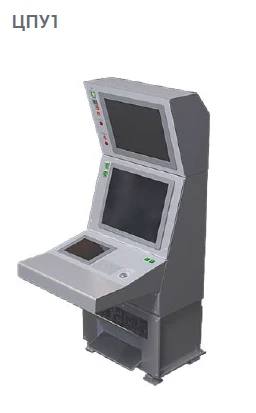

Central Control Panel 1 for Efficient Command and Information Processing

Central control panels are designed for the following tasks: <ul> <li>- receiving and processing operator commands;</li> <li>receiving information and commands from adjacent equipment;</li> <li>issuing information and commands to related equipment;</li> <li>output of information to display means.</li> </ul>The central control panel can be used as an operator panel of automated information and control systems. Technological efficiency of the device design provides the possibility of using panels with different controls as part of the device.

CPU1 is designed in a conductive heat dissipation (without fans) aluminium alloy construction, in a floor standing version for the operator to work in a sitting position. The CPU1 includes an external link module (MV C), which can be supplied in advance. The CPU1 contains an External Link Module (ELM), which can be delivered to the site in advance to provide convenient and proactive wiring connections to the instrument. Cable entry is realised in the middle part of the console, which makes it more convenient to service the device on order.

Block si...
