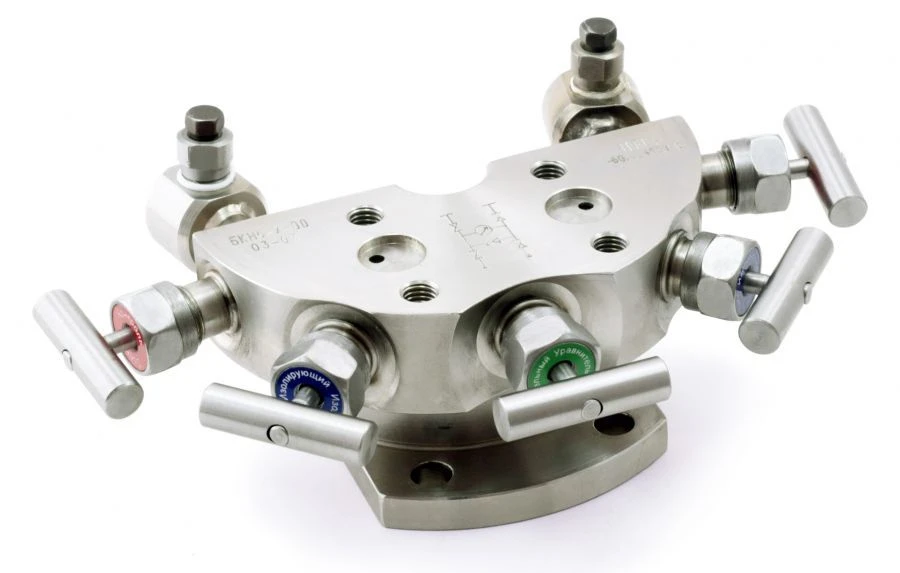

Differential Pressure Sensor Connection Block BKN-5 for Process Control

Pipeline Control Valves

Manufacturer: ITek BBMV LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for connection of differential pressure sensors to measuring lines in systems of automatic control, regulation and management of technological processes. All versions of valve blocks have two independent connection lines. BKN versions with drain valves allow to discharge the working medium from the impulse line and to connect a control device.

- Nominal pressure of the working medium is 40 MPa.
Temperature range of the working medium is from minus 60 to plus 150°C.
The weight of BKN5 is not more than 2.8 kg.
Class of tightness of valves A according to GOST 9544-2015.

Specifications

Airtightness class

And according to GOST 9544-2015

Operating medium

Liquid, steam, gas

Weight

Not more than 2.8kg. kg

Nominal pressure of the medium

40 MPa

Operating medium temperature range

-60...+150°C °C

Housing material

12CR18NI10T

Assigned service life

15 years

Assigned resource

96000

Designated life of each valve

100 cycles

Connection to impulse line

flanged, socket
