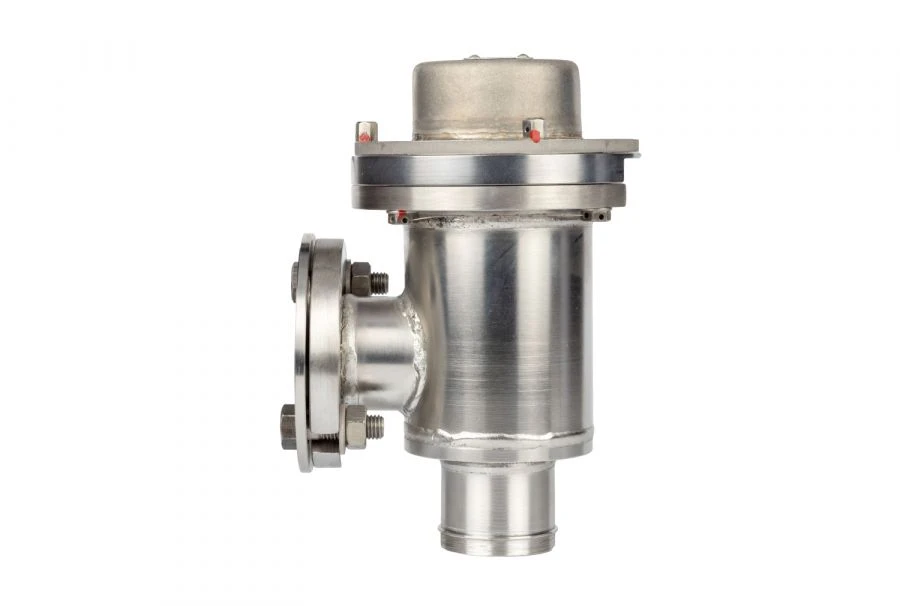

Special Manual Angle Vacuum Valve 50M URS for Efficient Vacuum Systems

Pipeline Control Valves

Manufacturer: VACUUMASH OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The body of the vacuum valve 50M URS is of welded construction and consists of a shell, seat, side and bottom spigots. The 50M URS valve is connected to the vacuum system by studs. The smooth part of the stem serves as a visual indication of the "open" or "closed" position of the valve. The cover is designed to protect the valve from accidental opening and also serves as an additional protection against ingress of atmospheric precipitation, sand, dust into the internal cavity of the valve. The valve is opened by turning the handwheel anti-clockwise. Closing of the valve occurs when turning the handwheel clockwise.

Specifications

Highest flow rate l Pa/s

8?10 -4

Number of handwheel revolutions until the valve is fully opened (closed)

8 (+/-1)

Handwheel force required for valve sealing, kg not more than

B1/B8 2100/900 MHz kg

Valve dimensions (h/e/n), mm, not more

160/240/140 mm

Weight, kg, not more

6.8 kg

Technical life, number of open-close cycles

500
