Available for Import

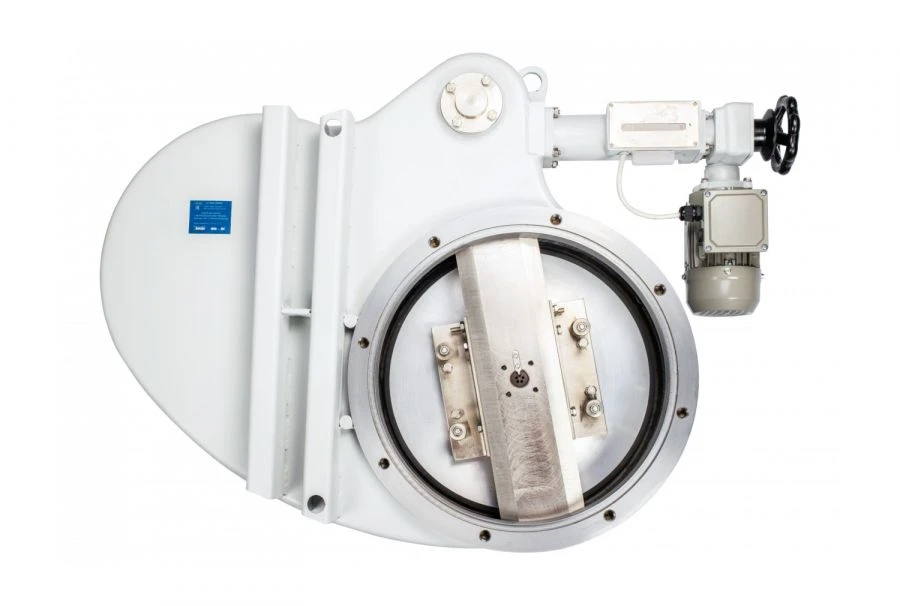

Electromechanical Vacuum Valve 2ZVE-400R for Vacuum Systems
Manufacturer:
VACUUMASH OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Description
Electromechanical vacuum gate 2ZVE-400R with a nominal bore of 400 mm is designed for shutting off vacuum systems in the range of working pressure from 1x10 -6 to 1x1,07x10 5 Pa. It is manufactured in climatic version UHL4 and O4 according to GOST 15150-69. working environment - air and non-aggressive gases. Electromechanical vacuum gate 2ZVE-400R is not intended for use in fire-explosive production.
Specifications
Conductivity (theoretical) in molecular mode, l /s, not less than
46 250 l/s
Tightness norm, l - Pa/s, not more than
1x10 -7 l - Pa/c
Time of opening (closing) of the gate from the electric actuator, s, not more than
27
Power consumption at the moment of opening (closing), W, max.
200 W
Pressure difference in closed position on either side of the flap, Pa, not more than
1,07?10 5
Permissible pressure difference at flap opening, Pa, not more than
1,33?10 3
Nominal bore, mm
400 mm
Overall dimensions, mm, not more
1070x750x235 mm
Weight, kg, not more
110 kg
