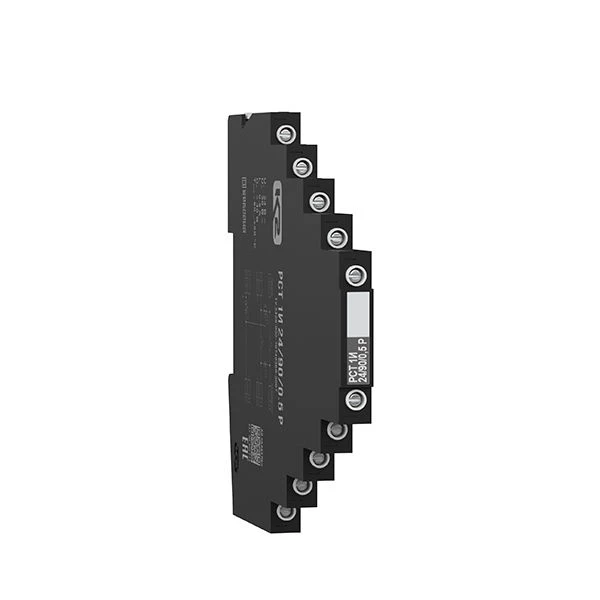

Device of protection against impulse overvoltages RST 1I 24/90/0,5 P, cat.?402 513.

UZIP series RST *I 24/90/0,5 R, TU 3428-002-79740390-2007 are designed to protect the equipment of distributed networks of industrial automation equipment (ACS TP, ASKUE, etc.), digital data transmission interfaces, etc.), digital interfaces of data transmission, signal lines of control and measurement systems, as well as for protection of secondary power supply circuits working on one 2-wire line from impulse overvoltages (lightning protection, protection from electrostatic discharges, etc.) within 0v - 2 zones of lightning protection in accordance with GOST R IEC 62305-1-2010.They are produced for rated operating voltage Uo= 24 V DC, rated current IL= 0,5 A. Data transmission speed up to 1 Mbit/s.Capable of passing the rated discharge current In (8/20)= 5 kA; ITotal (8/20)=10 kA.The devices are placed in a 7.4 mm thick housing for installation on a DIN-rail 35 mm. Number of protected pairs of conductors 1-2.
