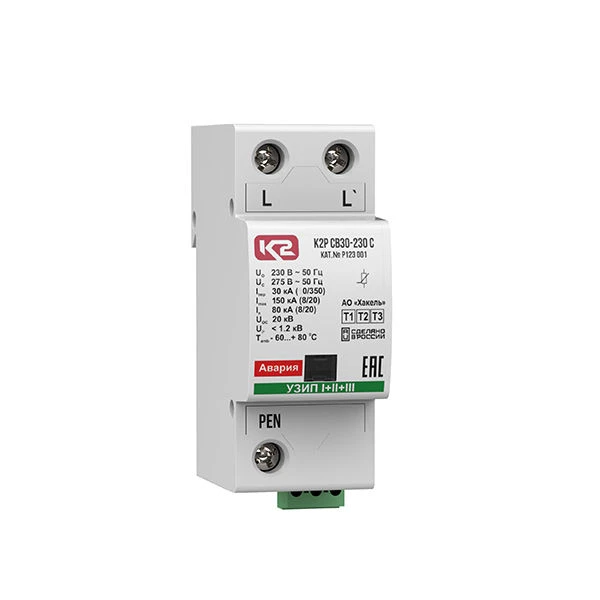

Protection device against impulse overvoltages K2P SV30-230 C, cat.no.?123 001.
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Single-pole surge arresters of test classes I, II, III of the limiting type for networks with earthing system type TN-C. Uo = 230/300 V AC/DC. Iimp(10/350)= 30 kA. With remote signalling. Installed within 0A(V) - 2 lightning protection zones (in accordance with GOST R IEC 62305-1 and SO-153-34.21.122). They are intended for protection of equipment in low-voltage power distribution systems with air or cable power input. The device is mounted on a 35 mm DIN-rail by means of a special latch on the rear side of the case.
Specifications
Number of channels
1 pc
Operating temperature
-60...80 °C
Type of protection
L/N, L/PEN, L/PE
Nominal system voltage
230 V
Protection voltage level at Iimp (10/350)
1200 V
Housing material
Polyamide PA6, UL94 V-0
Weight
300 g
Maximum discharge current (8/20), Imax
150000 A
Rated discharge current (8/20), In
80000 A
Combined wave test pulse (1.2/50), Uoc
20 kV
Dimensions, WxWxH, mm
99x36x66
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
