Available for Import

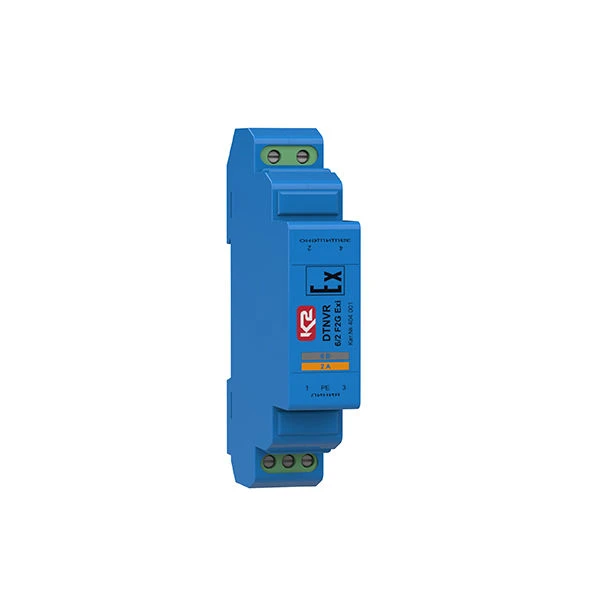

DTNVR 6/2 F2G Exi surge protection device, cat.no.404 001.
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Explosion-proof surge protectors DTNVR 6/* F2G Exi series, TU 3428-002-79740390-2007 are designed to protect equipment of distributed networks of industrial automation equipment (ACS, ASKUE, etc.) from impulse overvoltages (lightning protection, protection from electrostatic discharges, etc.) coming from the side of intrinsically safe circuits within 1 - 2 lightning protection zones in accordance with GOST R IEC 62305-1-2010. Capable of passing the rated discharge current In (8/20)=7,5 kA, In (10/350)=2,5 kA. They are made in a plastic case with a lock for installation on 35 mm DIN-rail.
Specifications
maximum operating current (max.
2 A
Rated operating voltage Un
6 V
Housing material
Polyamide PA6
Weight
56 g
Dimensions, WxWxH
18x91x65 mm
Explosion protection type marking
0Ex ia IIC T6 Ga X
Provides explosion protection of the type
Intrinsically safe electrical circuit
Number of channels
1 pc
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
