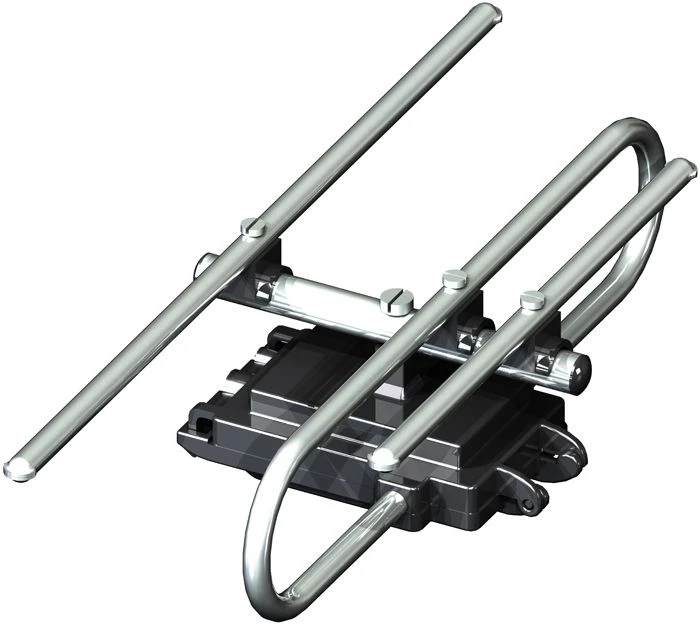

Decimetre band (UHF) antenna DELTA K1134A
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Designed for receiving television programmes in the DMV range (21-60 TV channels) of digital television broadcasting on a TV set with a digital tuner DVB-T2 or through a digital set-top box DVB-T2.
It is designed for operation in the temperature range from 5 to 35?? and the limit value of relative humidity of 80% at 25??.
The antenna is equipped with an amplifier that provides compensation of signal attenuation in the antenna cable and improves the quality of reception of weak signals. The +5V supply voltage is supplied to the amplifier through the antenna cable from the source built into the digital set-top box DVB-T2..
It is designed for operation in the temperature range from 5 to 35?? and the limit value of relative humidity of 80% at 25??.
The antenna is equipped with an amplifier that provides compensation of signal attenuation in the antenna cable and improves the quality of reception of weak signals. The +5V supply voltage is supplied to the amplifier through the antenna cable from the source built into the digital set-top box DVB-T2..
Specifications
Type by orientation
Directed
View
television
Type
decimeter range
Internal antenna type
room
Reinforcement type
Active
Type by received frequency range
decimeter
Maximum value of the operating radio frequency range
790
Input impedance
75 ohm
Received signals
470-790
Gain factor
23
Maximum operating temperature
30 °C
Minimum operating temperature
5 °C
Standing wave coefficient (VSWR)
75
Connector
F
Equipment
Antenna with 3 m cable
Weight
0.35 kg
Polarization
Horizontal
Power supply voltage
5 V
Mark
Delta
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
