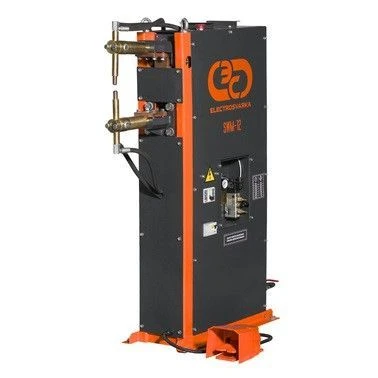

Contact welding machine MTP-1701 UHL4

Electric Welding Machines

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Contact welding machine MTP-2401 UHL4 Contact welding machine MTP-1201 UHL4

Description

Machine contact welding MTR-1701 is designed for contact spot welding of parts made of low-carbon, stainless steel, aluminium alloys, and cross joints of reinforcing bars in repeated-short-term mode.
MAIN FEATURES:
- Radial electrode travel;
- The system of stabilisation of welding current at fluctuations of a voltage of an electrical network;
- Efficient pneumatic compression drive system with compressed air regulation and preparation system;
- Water cooling system for transformer and electrode holders;
- Noise silencers on pneumatic valves

Specifications

Type of product according to PP RF 616 Contact welding equipment

Operating voltage 380 V

Mains frequency SBVVBG

Contact welding for resistance spot welding of parts made of mild steel sheet, stainless steel, aluminium alloys, and cross joints of reinforcing bars at repeated-short-time mode.

Highest secondary current 17

Rated continuous secondary current 3.2

Outreach (optional) (180-400 (900)) mm

Highest short-circuit power, kVA 75

Weight 325 kg

Overall dimensions (DxWxH) (1210?450?1255) mm
